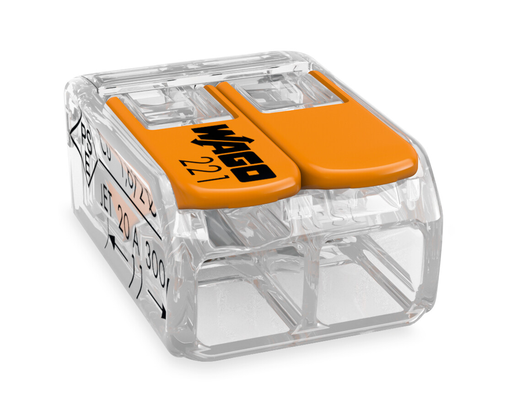

Wago Lever-Nuts COMPACT splicing connectors for all wire types; 2-conductor terminal block; with operating levers;24-12 AWG; Max. operating temperature 85°C

Features

• Ease of use – pull the lever up, insert a conductor and push the lever back down
• Available as 2-, 3- and 5-wire connectors
• Easily terminate conductors from 0.14 to 4 mm²
• Connect solid, stranded and fine-stranded conductors
• Time savings for installers and device manufacturers
• Quickly install devices with higher levels of power consumption
• Safely install long cable runs with larger conductor cross sections
• Mounting carrier for installation conforms to standards
• Custom carriers are possible

Approvals

• UL International Germany GmbH, UL, E69654, UL 486C
• Lloyds Register, LR, 04/20013 (E8), EN 60998
• DEKRA Certification B.V., CCA, NTR NL-7827, EN 60998
• American Bureau of Shipping, ABS, 18-HG1755093-PDA
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000015T, EN 60998
• DEKRA Certification B.V., KEMA/KEUR, 71-113253, EN 60998
• UL International Germany GmbH, UL_Listed_64KA, E201573, UL 467

Specifications

Notes

• Safety information 1: In grounded power lines

Ratings Per Iec/En

• Ratings per: EN 60664
• Nominal voltage (II/2): 450 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 32 A
• Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 486C
• Rated voltage UL (Use Group C): 600 V
• Rated current UL (Use Group C): 20 A

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Lever
• Connectable conductor materials: Copper
• Nominal cross-section: 4 mm²
• Solid conductor: 0.2 … 4 mm² / 24 … 12 AWG
• Stranded conductor: 0.2 … 4 mm² / 24 … 12 AWG
• Fine-stranded conductor: 0.14 … 4 mm² / 24 … 12 AWG
• Strip length: 11 mm / 0.43 inch
• Wiring direction: Side-entry wiring

Physical Data

• Width: 13.2 mm / 0.52 inch
• Height: 8.6 mm / 0.327 inch
• Depth: 18.8 mm / 0.732 inch

Material Data

• Color: Transparent
• Flammability class per UL94: V2
• Fire load: 0.033 MJ
• Color of actuator: Orange
• Weight: 1.708 g

Environmental Requirements

• Surrounding air temperature (operation): 85 °C
• Continuous operating temperature: 105 °C
• Temperature marking per EN 60998: T85

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821808435
• Customs tariff number Sales Organisation Germany: 85369010000
