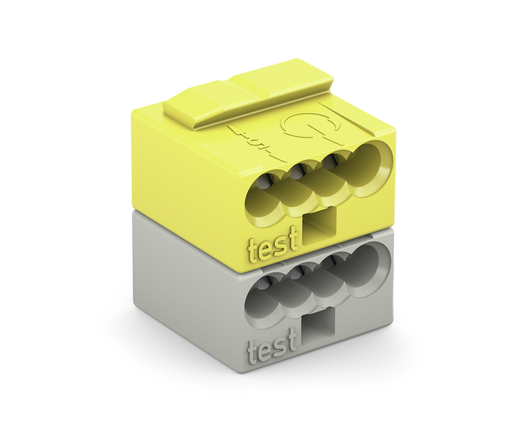

Features

• Compact, 4-conductor KNX/EIB connectors with PUSH WIRE® connection
• Push-in termination of solid conductors
• Four-conductor entries allow devices to be replaced without disrupting the KNX/EIB bus connection

Approvals

• Underwriters Laboratories Inc., UR, E45172, UL 1059

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 100 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 6 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Connection 1

• Connection technology: PUSH WIRE®
• Solid conductor: 22 … 20 AWG
• Conductor diameter: 0.6 … 0.8 mm / 22 … 20 AWG
• Conductor diameter (note): When using different conductor diameters
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch
• Pole No.: 2

Connection 2

• Solid conductor 2: 18 AWG
• Conductor diameter 2: 1 mm / 18 AWG
• Conductor diameter (note) 2: When using identical conductor diameters

Physical Data

• Width: 10 mm / 0.394 inch
• Height: 11.5 mm / 0.453 inch
• Depth: 10 mm / 0.394 inch

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For conductor

Material Data

• Color: Light gray/yellow
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.024 MJ
• Weight: 1.517 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918441407
• Customs tariff number Sales Organisation Germany: 85369010000
