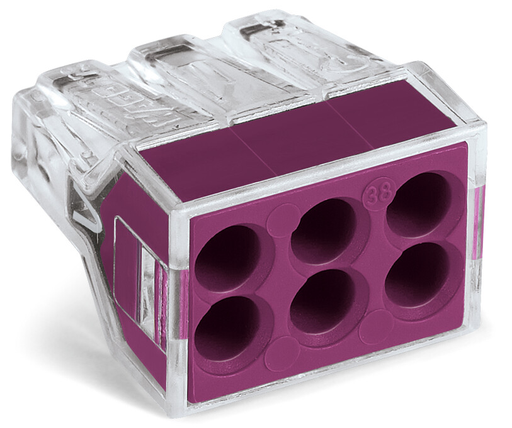

Features

Approvals

• Österreichischer Verband für Elektrotechnik, ÖVE, 1193-031-09, EN 60998
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000015T, EN 60998
• UL International Germany GmbH, UL, E69654, UL 486C
• UL International Demko A/S, CCA, CCA-DK No. 2520, EN 60998
• American Bureau of Shipping, ABS, 18-HG1755093-PDA
• Bureau Veritas S.A., BV, 11914/D0 BV, EN 60998
• DEKRA Certification B.V., KEMA/KEUR, 71-101747, EN 60998
• DEKRA Certification B.V., CSA, 15411 (LR46759), C22.2
• UL International Germany GmbH, UL, D-03479-A1, EN 60998
• Lloyds Register, LR, 04/20013 (E8), EN 60998

Specifications

Notes

• Safety information 1: In grounded power lines

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (II/2): 400 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 24 A
• Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2

Connection 1

• Connection technology: PUSH WIRE®
• Actuation type: Push-in
• Connectable conductor materials: Copper || Aluminum
• Anschließbare Leiterwerkstoffe Hinweis: WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.For spring clamp connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm² = 16 A4 mm² = 22 A
• Solid conductor: 0.75 … 2.5 mm² / 18 … 12 AWG
• Stranded conductor: 1.5 … 2.5 mm² / 16 … 12 AWG
• Note (conductor cross-section): When using conductors of exclusively the same cross-section, 0.75 mm² / 18 AWG is also possible.
• Strip length: 12 mm / 0.47 inch
• Wiring direction: Side-entry wiring

Physical Data

• Width: 18.8 mm / 0.74 inch
• Height: 13.1 mm / 0.516 inch
• Depth: 19.5 mm / 0.768 inch

Material Data

• Color: Multicoloured
• Cover color: Violett
• Flammability class per UL94: V2
• Fire load: 0.076 MJ
• Weight: 3.550 g

Environmental Requirements

• Surrounding air temperature (operation): 60 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4044918397681
• Customs tariff number Sales Organisation Germany: 85369010000
