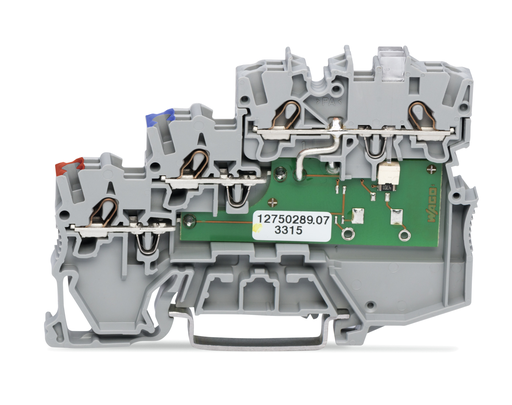

Features

Approvals

• DEKRA Certification B.V., CCA, NTR NL 7671, EN 60947
• DEKRA Certification B.V., CSA, 2130762, C22.2
• DEKRA Certification B.V., CCA, 71-102841, EN 60947
• Underwriters Laboratories Inc., UL, E45172, UL 1059

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-1
• Rated current: 13.5 A

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 24 V
• Rated current UL (Use Group B): 15 A
• Rated voltage UL (Use Group D): 24 V
• Rated current UL (Use Group D): 15 A

Ratings Per Csa

• Approvals per: C22.2 No 158
• Rated voltage CSA (Use Group C): 24 V
• Rated current CSA (Use Group C): 10 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-in || Operating tool
• Connectable conductor materials: Copper
• Nominal cross-section: 1 mm²
• Solid conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
• Solid conductor; push-in termination: 0.5 … 1.5 mm² / 20 … 16 AWG
• Fine-stranded conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor; with insulated ferrule: 0.14 … 0.75 mm² / 24 … 18 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 0.5 … 0.75 mm² / 20 … 18 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 9 … 11 mm / 0.35 … 0.43 inch
• Wiring direction: Front-entry wiring

Physical Data

• Width: 7 mm / 0.276 inch
• Height: 81.1 mm / 3.193 inch
• Depth from upper edge of DIN-rail: 52.4 mm / 2.063 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Center/side marking

Material Data

• Color: Gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.329 MJ
• Weight: 16.792 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143452892
• Customs tariff number Sales Organisation Germany: 85369010000
