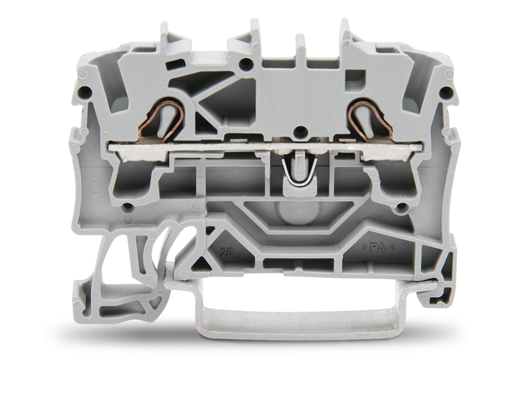

Features

Approvals

• Underwriters Laboratories Inc., AEx, E185892, UL 60079
• American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
• CQST/CNEx, CCCEx, 2020312313000238, CNCA-C23-01
• Bureau Veritas S.A., BV, 38586/A0 BV, EN 60947
• Lloyds Register, LR, 91/20112 (E9), EN 60947
• DEKRA Certification B.V., CCA, 1536069, C22.2 No. 158
• Korea Testing Laboratory, KTL, 19-KA4B0-0921U, EN IEC 60079-0
• Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
• Physikalisch Technische Bundesanstalt (PTB), ATEX, PTB 03 ATEX 1162 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, EN 60079
• DEKRA Certification B.V., CCA, 71-107687, EN 60947
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
• Korea Testing Laboratory, KTL, 19-KA4B0-0921U, EN IEC 60079-7
• Underwriters Laboratories Inc., UL, E45172, UL 1059
• DEKRA Certification B.V., CCA, NTR NL 7730, EN 60947
• Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 03.0004U Ex eb IIC Gb or Ex eb I Mb, IEC 60079

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-1
• Nominal voltage (III/3): 800 V
• Rated surge voltage (III/3): 8 kV
• Rated current: 24 A
• Rated current 2: 32 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 600 V
• Rated current UL (Use Group B): 20 A
• Rated voltage UL (Use Group C): 600 V
• Rated current UL (Use Group C): 20 A

Ratings Per Csa

• Approvals per: C22.2 No 158
• Rated voltage CSA (Use Group B): 600 V
• Rated current CSA (Use Group B): 20 A
• Rated voltage CSA (Use Group C): 600 V
• Rated current CSA (Use Group C): 20 A

Ex Information

• Ratings per: ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)
• Rated voltage EN (Ex e II): 550 V
• Rated current (Ex e II): 22 A
• Rated current (Ex e II) with jumper: 20 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-in || Operating tool
• Connectable conductor materials: Copper
• Nominal cross-section: 2.5 mm²
• Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Solid conductor; push-in termination: 1 … 4 mm² / 18 … 12 AWG
• Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 10 … 12 mm / 0.39 … 0.47 inch
• Wiring direction: Front-entry wiring

Physical Data

• Width: 5.2 mm / 0.205 inch
• Height: 48.5 mm / 1.909 inch
• Depth from upper edge of DIN-rail: 32.9 mm / 1.295 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Center/side marking

Material Data

• Color: Gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.109 MJ
• Weight: 5.086 g

Commercial Data

• Packaging type: Box
• GTIN: 4017332999168
