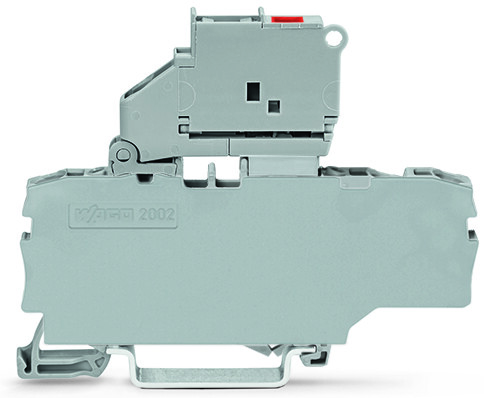

Features

Approvals

• CQST/CNEx, CCCEx, 2020312313000180, CNCA-C23-01
• Underwriters Laboratories Inc., AEx, E185892, UL 60079
• KIWA Netherlands B.V., IECEx, IECEx KIWA 17.0014U Ex ec IIC Gc, EN 60079
• DEKRA Certification B.V., CCA, NTR NL 7730, EN 60947
• DEKRA Certification B.V., CCA, 71-107687, EN 60947
• DEKRA EXAM GmbH, ATEX, KIWA 17ATEX0030 U, EN 60079
• American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
• Underwriters Laboratories Inc., UL, E45172, UL 1059
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-3
• Ratings (note): Electrical ratings are given by the fuse and blown fuse indication.
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 6 kV
• Rated current: 6.3 A
• Note on rated current 1: Leakage current in case of a blown fuse: LED 2 mA
• Operation status indicator: 12 … 30 V
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 30 V
• Rated current UL (Use Group B): 10 A
• Rated voltage UL (Use Group C): 30 V
• Rated current UL (Use Group C): 10 A
• Rated voltage UL (Use Group D): 30 V
• Rated current UL (Use Group D): 10 A

Ratings Per Csa

• Approvals per: C22.2 No 158

Ex Information

• Ratings per: ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)
• Rated voltage EN (Ex e II): 24 V
• Rated current (Ex e II): 6.3 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-in || Operating tool
• Connectable conductor materials: Copper
• Nominal cross-section: 2.5 mm²
• Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
• Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 10 … 12 mm / 0.39 … 0.47 inch
• Wiring direction: Front-entry wiring

Physical Data

• Width: 6.2 mm / 0.244 inch
• Height: 76.8 mm / 3.024 inch
• Depth from upper edge of DIN-rail: 57.6 mm / 2.268 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Center/side marking
• Art der Sicherung: Cylindrical fuse 5 x 20 mm

Material Data

• Color: Gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.242 MJ
• Weight: 15.044 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821707615
• Customs tariff number Sales Organisation Germany: 85369095000
