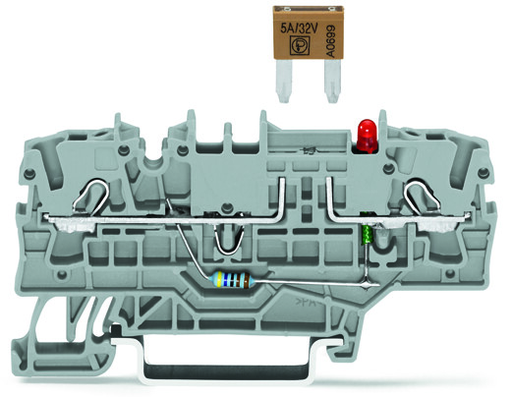

WAGO 2002-1981/1000-449

2002-1981/1000-449 WAGO 2002-1981/1000-449

WAGO 2002-1981/1000-449
Part # 2002-1981/1000-449
Manufacturer WAGO
GTIN 4050821089360
Condition New
Price: $ 14.90

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
2 COND TJS FUSE BLK GREY 12V LED II
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2 COND TJS FUSE BLK GREY 12V LED II

Features

Approvals

  • Underwriters Laboratories Inc., UL, E45172, UL 1059
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL 7730, EN 60947
  • DEKRA Certification B.V., CCA, 71-107687, EN 60947

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-3
  • Ratings (note): Electrical ratings are given by the fuse and blown fuse indication.
  • Nominal voltage (III/3): 400 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 10 A
  • Ratings (note) 2: Blade-style fuses: Observe touch-proof protection for 42 V and higher voltages!10 A (individual arrangement)5 A (block arrangement)
  • Operation status indicator: 12 V
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 12 V
  • Rated current UL (Use Group B): 10 A
  • Rated voltage UL (Use Group C): 12 V
  • Rated current UL (Use Group C): 10 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-in || Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 2.5 mm²
  • Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
  • Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
  • Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 10 … 12 mm / 0.39 … 0.47 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 5.2 mm / 0.205 inch
  • Height: 72.9 mm / 2.87 inch
  • Depth from upper edge of DIN-rail: 32.9 mm / 1.295 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center/side marking
  • Art der Sicherung: Mini plug-in fuse 10.9 x 3.6 x 16.3 mm

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.177 MJ
  • Weight: 8.150 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CN
  • GTIN: 4050821089360
  • Customs tariff number Sales Organisation Germany: 85369095000
: *
: *
: *
