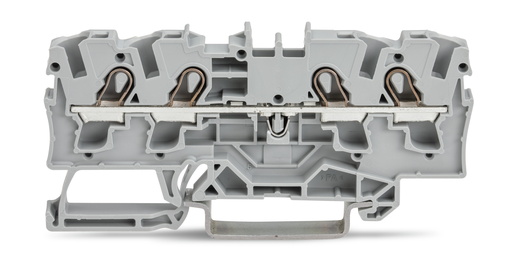

Features

Approvals

• Physikalisch Technische Bundesanstalt (PTB), IECEx, IECEx PTB 05.0033 U Ex eb IIC Gb resp. Ex eb I Mb, IEC 60079
• UL International Germany GmbH, UL, E45172, UL 1059
• Bureau Veritas S.A., BV, 38586/A0 BV, EN 60947
• DEKRA Certification B.V., CSA, 1645435, C22.2 No. 158
• DEKRA Certification B.V., CCA, NTR NL-7088, EN 60947
• Physikalisch Technische Bundesanstalt (PTB), ATEx, PTB 05 ATEX 1095 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, EN 60079
• Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
• CQST/CNEx, CCCEx, 2020312313000160, CNCA-C23-01
• DEKRA Certification B.V., CCA, 2160584.10, EN 60947
• Lloyds Register, LR, 91/20112 (E9), EN 60947
• American Bureau of Shipping, ABS, 20-HG1941090-PDA
• Underwriters Laboratories Inc., AEx, E185892, EN 60079

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-1
• Nominal voltage (III/3): 800 V
• Rated surge voltage (III/3): 8 kV
• Rated current: 32 A
• Rated current 2: 41 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 600 V
• Rated current UL (Use Group B): 30 A
• Rated voltage UL (Use Group C): 600 V
• Rated current UL (Use Group C): 30 A

Ratings Per Csa

• Approvals per: C22.2 No 158
• Rated voltage CSA (Use Group B): 600 V
• Rated current CSA (Use Group B): 30 A
• Rated voltage CSA (Use Group C): 600 V
• Rated current CSA (Use Group C): 30 A

Ex Information

• Ratings per: ATEX: PTB 05 ATEX 1095 U / IECEx: PTB 05.0033U (Ex eb IIC Gb)
• Rated voltage EN (Ex e II): 550 V
• Rated current (Ex e II): 30 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-in || Operating tool
• Connectable conductor materials: Copper
• Nominal cross-section: 4 mm²
• Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Solid conductor; push-in termination: 1.5 … 6 mm² / 14 … 10 AWG
• Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Fine-stranded conductor; with insulated ferrule: 0.5 … 4 mm² / 20 … 12 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 1.5 … 4 mm² / 18 … 12 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 11 … 13 mm / 0.43 … 0.51 inch
• Wiring direction: Front-entry wiring

Physical Data

• Width: 6.2 mm / 0.244 inch
• Height: 78.7 mm / 3.098 inch
• Depth from upper edge of DIN-rail: 32.9 mm / 1.295 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Center/side marking

Material Data

• Color: Gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.196 MJ
• Weight: 10.458 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4017332071758
• Customs tariff number Sales Organisation Germany: 85369010000
