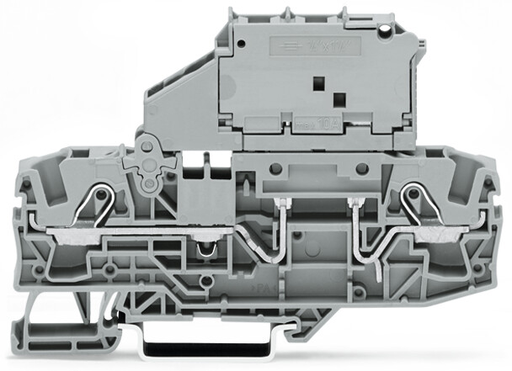

Features

Approvals

• DEKRA Certification B.V., CCA, NTR NL 7877, IEC 60947
• American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
• UL International Germany GmbH, UL, E45172, UL 1059
• DEKRA Certification B.V., CCA, 71-119205, IEC 60947
• DEKRA Certification B.V., CSA, 1543858, C22.2 No. 158
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-3
• Ratings (note): Electrical ratings are given by the fuse and blown fuse indication.
• Nominal voltage (III/3): 800 V
• Rated surge voltage (III/3): 8 kV
• Rated current: 10 A
• Note on rated current 1: Leakage current in case of a blown fuse: LED 2 mA
• Operation status indicator: 230 V
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 230 V
• Rated current UL (Use Group B): 15 A
• Rated voltage UL (Use Group C): 230 V
• Rated current UL (Use Group C): 15 A

Ratings Per Csa

• Approvals per: C22.2 No 158
• Rated voltage CSA (Use Group B): 600 V
• Rated current CSA (Use Group B): 15 A
• Rated voltage CSA (Use Group C): 600 V
• Rated current CSA (Use Group C): 15 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-in || Operating tool
• Connectable conductor materials: Copper
• Nominal cross-section: 6 mm²
• Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Solid conductor; push-in termination: 1 … 10 mm² / 14 … 8 AWG
• Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm² / 20 … 10 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 2.5 … 6 mm² / 16 … 10 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 13 … 15 mm / 0.51 … 0.59 inch
• Wiring direction: Front-entry wiring

Physical Data

• Width: 7.5 mm / 0.295 inch
• Height: 96.3 mm / 3.791 inch
• Depth from upper edge of DIN-rail: 59 mm / 2.323 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Center/side marking
• Art der Sicherung: Cylindrical fuse 1/4" x 1 1/4"

Material Data

• Color: Gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.332 MJ
• Weight: 25.087 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454824044
• Customs tariff number Sales Organisation Germany: 85369095000
