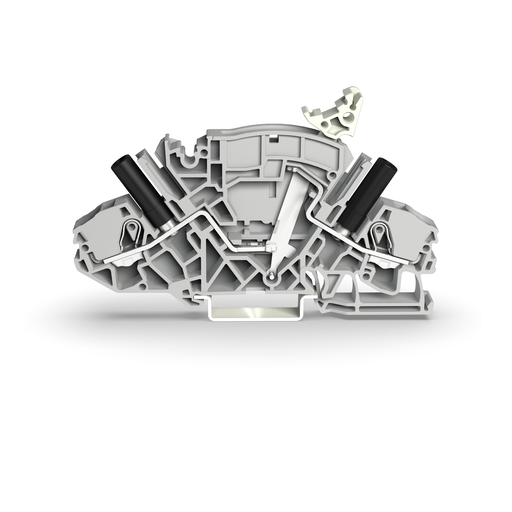

Features

Approvals

• DEKRA Certification B.V., CSA, 70009679, C22.2 No. 158
• Underwriters Laboratories Inc., UL, E45172, UL 1059
• DEKRA Certification B.V., CCA, 2198208.01, EN 60947
• DEKRA Certification B.V., CCA, NTR NL-7323, EN 60947
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2

Specifications

Ratings Per Iec/En

• Nominal voltage (III/3): 500 V
• Rated surge voltage (III/3): 6 kV
• Rated current: 30 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 30 A
• Rated voltage UL (Use Group C): 300 V
• Rated current UL (Use Group C): 30 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A

Ratings Per Csa

• Approvals per: C22.2 No 158
• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 30 A
• Rated voltage CSA (Use Group C): 300 V
• Rated current CSA (Use Group C): 30 A
• Rated voltage CSA (Use Group D): 300 V
• Rated current CSA (Use Group D): 10 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-in || Operating tool
• Connectable conductor materials: Copper
• Nominal cross-section: 6 mm²
• Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Solid conductor; push-in termination: 1 … 10 mm² / 14 … 8 AWG
• Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm² / 20 … 10 AWG
• Fine-stranded conductor; with uninsulated ferrule: 1.5 … 6 mm² / 16 … 10 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 2.5 … 6 mm² / 16 … 10 AWG
• Strip length: 13 … 15 mm / 0.51 … 0.59 inch
• Wiring direction: Front-entry wiring

Physical Data

• Width: 8 mm / 0.315 inch
• Height: 99.6 mm / 3.921 inch
• Depth from upper edge of DIN-rail: 65.3 mm / 2.571 inch

Mechanical Data

• Design: Angled
• Mounting type: DIN-35 rail
• Marking level: Center/side marking

Material Data

• Color: Gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.000 MJ
• Weight: 27.859 g
• Farbe der Prüfbuchse: Schwarz

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4055144059410
• Customs tariff number Sales Organisation Germany: 85365080900
