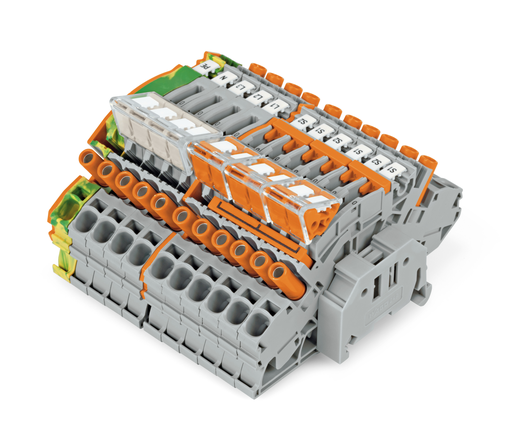

Features

• 6 x 2-conductor disconnect/test terminal block, with touch-proof test sockets, for 4 mm Ø test plugs (2007-8821)
• 4 x 2-conductor disconnect/test terminal block, with touch-proof test sockets, for 4 mm Ø test plugs (2007-8811)
• 1 x 2-conductor ground terminal block, with touch-proof test socket, for 4 mm Ø test plugs (2007-8807)
• 3 x circuit jumper, insulated, 2-way (2007-8442)
• 1 x jumper, insulated, 1-3-5 (282-435/011-000)
• 3 x locking cover, mechanically locks multiple links, 2-pole (282-882)
• 1 x locking cover, mechanically locks multiple links, 4-pole (282-884)
• 2 x end and separator plate, 1.5 mm thick, without lock-out seal option (2007-8892)
• 21 x WMB Inline, plain, 1,500 WMB markers (5 mm) per reel (2009-115)
• 2 x screwless end stop, 10 mm wide (249-117)

Specifications

Ratings Per Iec/En

• Nominal voltage (III/3): 500 V
• Rated surge voltage (III/3): 6 kV
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-in || Operating tool
• Connectable conductor materials: Copper
• Nominal cross-section: 6 mm²
• Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Solid conductor; push-in termination: 1 … 10 mm² / 14 … 8 AWG
• Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm² / 20 … 10 AWG
• Fine-stranded conductor; with uninsulated ferrule: 1.5 … 6 mm² / 16 … 10 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 2.5 … 6 mm² / 16 … 10 AWG
• Strip length: 13 … 15 mm / 0.51 … 0.59 inch
• Wiring direction: Front-entry wiring

Physical Data

• Width: 112 mm / 4.409 inch
• Height: 99.6 mm / 3.921 inch
• Depth from upper edge of DIN-rail: 65.3 mm / 2.571 inch
• Module width: 8 mm / 0.315 inch

Mechanical Data

• Design: Angled
• Mounting type: DIN-35 rail
• Marking level: Center/side marking

Material Data

• Color: Multicoloured
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 5.527 MJ
• Weight: 347.501 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821776697
• Customs tariff number Sales Organisation Germany: 85369010000
