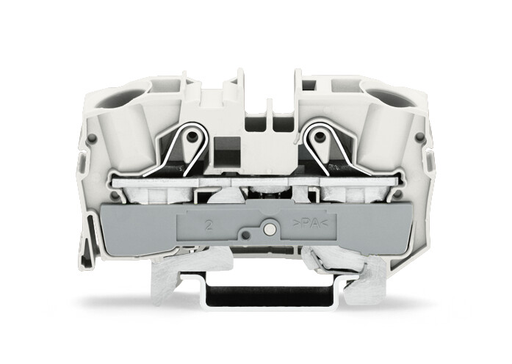

Features

Approvals

• DEKRA Certification B.V., CCA, NTR NL-7881, EN 60947
• Bureau Veritas S.A., BV, 38586/A0, EN 60947
• Lloyds Register, LR, 91/20112 (E9), EN 60947
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
• American Bureau of Shipping, ABS, 20-HG1941090-PDA
• UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt, AEx, E185892, UL 60079
• DEKRA Certification B.V., KEMA/KEUR, 71-119271, EN 60947
• Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
• Underwriters Laboratories Inc., UL, E45172, UL 1059
• DEKRA Certification B.V., CSA, 1579112, C22.2 No. 158

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-2
• Note on rated current 1: 15 mm high DIN-35 rails shall be used for a current load higher than 76 A!

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-in || Operating tool
• Connectable conductor materials: Copper
• Nominal cross-section: 16 mm²
• Solid conductor: 0.5 … 16 mm² / 20 … 6 AWG
• Solid conductor; push-in termination: 6 … 16 mm² / 14 … 6 AWG
• Fine-stranded conductor: 0.5 … 25 mm² / 20 … 4 AWG
• Fine-stranded conductor; with insulated ferrule: 0.5 … 16 mm² / 20 … 6 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 6 … 16 mm² / 10 … 6 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 18 … 20 mm / 0.71 … 0.79 inch
• Wiring direction: Front-entry wiring

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 69.8 mm / 2.748 inch
• Depth from upper edge of DIN-rail: 36.9 mm / 1.453 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Center/side marking

Material Data

• Color: White
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.282 MJ
• Weight: 36.309 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821193739
• Customs tariff number Sales Organisation Germany: 85369010000
