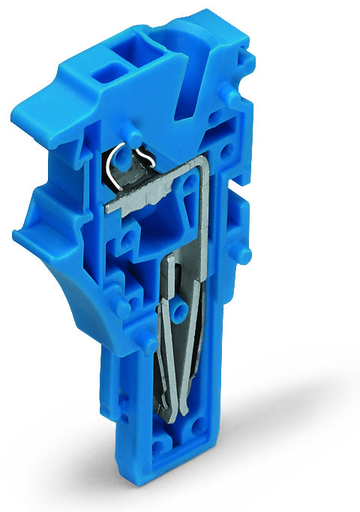

Features

• One base module with an integrated end plate
• Up to 13 center modules (corresponding to a 15-pole female plug = maximum pole number)
• One end module

Approvals

• DEKRA Certification B.V., KEMA/KEUR, 71-101560, EN 61984
• Underwriters Laboratories Inc., UL, E45172, UL 1059
• Bureau Veritas S.A., BV, 38586/A0 BV, EN 60947
• Lloyds Register, LR, 91/20112 (E9), EN 60947
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
• American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
• DEKRA Certification B.V., CSA, 2437422, C22.2 No. 158

Specifications

Notes

• Safety information 1: According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.

Ratings Per Iec/En

• Ratings per: IEC/EN 61984
• Nominal voltage (III/3): 690 V
• Rated surge voltage (III/3): 6 kV
• Rated current: 24 A
• Rated current 2: 32 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 600 V
• Rated current UL (Use Group B): 20 A
• Rated voltage UL (Use Group C): 600 V
• Rated current UL (Use Group C): 20 A

Ratings Per Csa

• Approvals per: C22.2 No 158
• Rated voltage CSA (Use Group C): 600 V
• Rated current CSA (Use Group C): 20 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Operating tool || Push-in
• Connectable conductor materials: Copper
• Nominal cross-section: 2.5 mm²
• Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
• Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 10 … 12 mm / 0.39 … 0.47 inch
• Pole No.: 1
• Wiring direction: Front-entry wiring

Physical Data

• Width: 5.2 mm / 0.205 inch
• Height: 40.5 mm / 1.594 inch
• Depth: 22.4 mm / 0.882 inch

Mechanical Data

• Marking level: Side marking

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For conductor

Material Data

• Color: Blue
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.053 MJ
• Weight: 3.350 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4050821243380
• Customs tariff number Sales Organisation Germany: 85366990990
