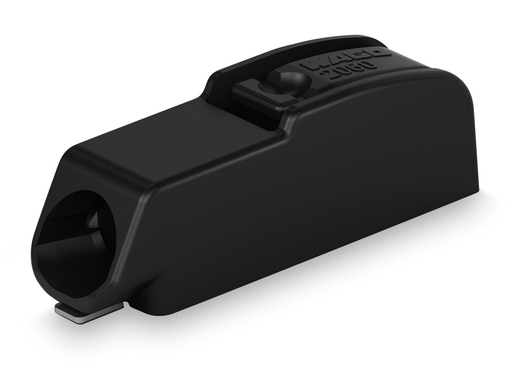

WAGO 2060-471/998-404

2060-471/998-404 WAGO 2060-471/998-404

WAGO 2060-471/998-404
Part # 2060-471/998-404
Condition New
Price: $ 0.35

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
SMD PCB terminal block
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
SMD PCB terminal block

Features

  • SMD PCB terminal blocks with Push-in CAGE CLAMP® connection technology and push-buttons
  • Push-in termination of solid and ferruled conductors
  • Convenient termination/removal of fine-stranded conductors via push-buttons
  • Just 4.5 mm tall
  • Available in tape-and-reel packaging for automated assembly

Approvals

  • DEKRA Certification B.V., CCA, NTR NL 2168246, EN 60838
  • Underwriters Laboratories Inc., cURus, E45171, UL 1977
  • DEKRA Certification B.V., CCA, NTR NL 7843, EN 60947-7-4
  • DEKRA Certification B.V., KEMA/KEUR, 71-109040, EN 60998
  • DEKRA Certification B.V., CCA, NTR NL-7724, EN 60947
  • DEKRA Certification B.V., KEMA/KEUR, 2168246.01, EN 60838
  • DEKRA Certification B.V., KEMA/KEUR, 71-114208, EN 60947-7-4
  • DEKRA Certification B.V., KEMA/KEUR, 71-108183, EN 60947

Specifications

Notes

  • Note: Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. || Depending on reflow soldering temperatures and times, color deviations may occur. These deviations will have no impact on functionality.
  • Recommendation: Recommendation for stencil:Material thickness: 150 µm; Pattern layout identical to solder pad layout

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 63 V
  • Rated surge voltage (III/3): 2.5 kV
  • Rated voltage (III/2): 160 V
  • Rated surge voltage (III/2): 2.5 kV
  • Nominal voltage (II/2): 320 V
  • Rated surge voltage (II/2): 2.5 kV
  • Rated current: 9 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

  • Rated voltage UL 1977: 600 V
  • Rated current UL 1977: 9 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-button
  • Solid conductor: 0.2 … 0.75 mm² / 24 … 18 AWG
  • Fine-stranded conductor: 0.2 … 0.75 mm² / 24 … 18 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 0.34 mm²
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 0.34 mm²
  • Strip length: 7 … 9 mm / 0.28 … 0.35 inch
  • Conductor connection direction to PCB: 0 °
  • Pole No.: 1

Physical Data

  • Pin spacing: 4 mm / 0.157 inch
  • Width: 3.9 mm / 0.154 inch
  • Height: 4.5 mm / 0.177 inch
  • Depth: 13.1 mm / 0.516 inch
  • Reel diameter of tape-and-reel packaging: 330 mm
  • Tape width: 24 mm

Pcb Contact

  • PCB Contact: SMD
  • Solder pin arrangement: Over the entire terminal strip (in-line)
  • Number of solder pins per potential: 2

Material Data

  • Color: Black
  • Material group: I
  • Insulation material: Polyphthalamide (PPA GF)
  • Flammability class per UL94: V0
  • Clamping spring material: Copper alloy
  • Contact material: Copper alloy
  • Contact plating: Tin-plated
  • Fire load: 0.000 MJ
  • Weight: 0.250 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CH
  • GTIN: 4055143251198
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
