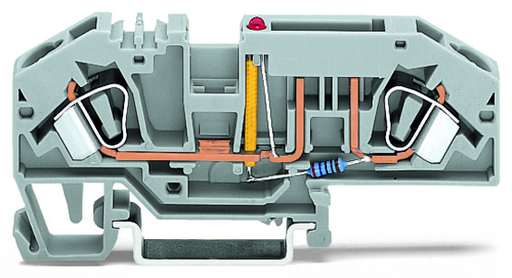

Features

Approvals

• UL International Germany GmbH, UR, E45172, UL 1059

Specifications

Ratings Per Iec/En

• Ratings (note): Electrical ratings are given by the fuse and blown fuse indication.
• Nominal voltage (III/3): 400 V
• Rated surge voltage (III/3): 6 kV
• Rated current: 25 A
• Note on rated current 1: LED power consumption: 4.8 mA
• Ratings (note) 2: Blade-style fuses: Observe touch-proof protection for 42 V and higher voltages!
• Rated current 2: 30 A
• Operation status indicator: 12 V
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Connectable conductor materials: Copper
• Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Strip length: 12 … 13 mm / 0.47 … 0.51 inch
• Wiring direction: Front-entry wiring

Physical Data

• Width: 8 mm / 0.315 inch
• Height: 85 mm / 3.346 inch
• Depth from upper edge of DIN-rail: 33.5 mm / 1.319 inch

Mechanical Data

• Design: Angled
• Mounting type: DIN-35 rail
• Marking level: Center marking
• Art der Sicherung: Flat blade fuse 19.1 x 5.1 x 18.5 mm

Material Data

• Color: Gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.300 MJ
• Weight: 17.940 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4055143260749
• Customs tariff number Sales Organisation Germany: 85369095000
