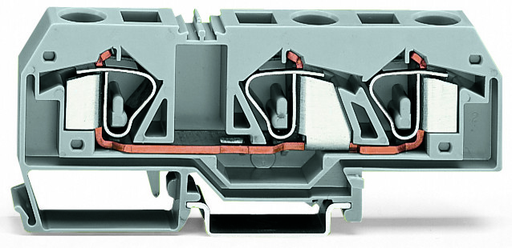

Features

Approvals

• American Bureau of Shipping, ABS, 20-HG1941090-PDA
• DEKRA Certification B.V., CSA, 1536072, C22.2 No. 158
• Bureau Veritas S.A., BV, 07436/F0 BV, EN 60947
• DEKRA Certification B.V., KEMA/KEUR, 2187239.03, EN 60947
• Lloyds Register, LR, 91/20112 (E9), EN 60947
• UL International Germany GmbH, UL, E45172, UL 1059
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
• DEKRA Certification B.V., CCA, NTR NL-7456/A1, EN 60947

Specifications

Notes

• Safety information 1: Notice: This terminal block cannot be commoned with adjacent jumpers.

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-1
• Nominal voltage (III/3): 800 V
• Rated surge voltage (III/3): 8 kV
• Rated current: 76 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Connectable conductor materials: Copper
• Solid conductor: 0.2 … 16 mm² / 24 … 6 AWG
• Fine-stranded conductor: 0.2 … 16 mm² / 24 … 6 AWG
• Strip length: 16 … 17 mm / 0.63 … 0.67 inch
• Wiring direction: Front-entry wiring

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 104.5 mm / 4.114 inch
• Depth from upper edge of DIN-rail: 37.5 mm / 1.476 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Center marking

Material Data

• Color: Blue
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.619 MJ
• Weight: 45.331 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918543699
• Customs tariff number Sales Organisation Germany: 85369010000
