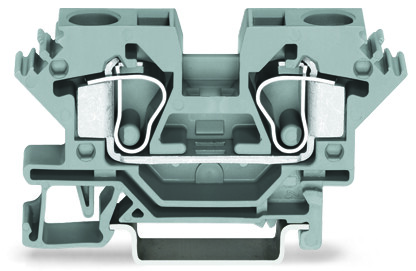

WAGO 284-691
WAGO 284-691
284-691 WAGO 284-691
OutOfStock
Out Of Stock
Part #
284-691
Manufacturer
WAGO
GTIN
4044918486484
Condition
New
Quantity
Price
*Note:
Price:
$
5.09
Please Contact Us for Stock Availability
Qty
1
Add to cart
Order by 3PM MST (subject to stock availability) same day shipping available!
RL MTD TRM BLK-1-EEX
Got questions?
Send us a message
or call us at
1-800-335-5111
for additional assistance.
Detailed Information
Send to friend
2-Conductor Ex e II through terminal block suitable for Ex e applications
Features
Approvals
Lloyds Register, LR, 91/20112 (E9), EN 60947
UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt, AEx, E185892, UL 60079
UL International Germany GmbH, UL, E45172, UL 1059
Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
Physikalisch Technische Bundesanstalt (PTB), ATEx, PTB 98 ATEX 3133 UII 2 G Ex eb IIC bzw. I M 2 Ex eb I Mb, EN 60079
Bureau Veritas S.A., BV, 07436/F0 BV, EN 60947
DEKRA Certification B.V., CCA, NTR NL-7379, EN 60947
DEKRA Certification B.V., KEMA/KEUR, 2178517.01, EN 60947
American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
DEKRA Certification B.V., CSA, 1536073, C22.2 No. 158
Physikalisch Technische Bundesanstalt (PTB), IECEx, IECEx PTB 14.0046U Ex eb IIC Gb and Ex eb I Mb, IEC 60079
CQST/CNEx, CCCEx, 2020312313000176, CNCA-C23-01
Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
Specifications
Ratings Per Iec/En
Ratings per: IEC/EN 60947-7-1
Ex Information
Rated voltage EN (Ex e II): 550 V
Rated current (Ex e II): 53 A
Connection 1
Connection technology: CAGE CLAMP®
Actuation type: Operating tool
Connectable conductor materials: Copper
Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
Strip length: 12 … 13 mm / 0.47 … 0.51 inch
Wiring direction: Front-entry wiring
Physical Data
Width: 10 mm / 0.394 inch
Height: 69 mm / 2.717 inch
Depth from upper edge of DIN-rail: 33.5 mm / 1.319 inch
Mechanical Data
Design: Horizontal type
Mounting type: DIN-35 rail
Marking level: Side marking
Material Data
Color: Light gray
Insulation material: Polyamide (PA66)
Flammability class per UL94: V0
Fire load: 0.261 MJ
Weight: 18.721 g
Commercial Data
Packaging type: Box
Country of origin Sales Organisation Germany: DE
GTIN: 4044918486484
Customs tariff number Sales Organisation Germany: 85369010000
