WAGO
»
Rail Mounted Terminal Blocks
»
Series 285
»

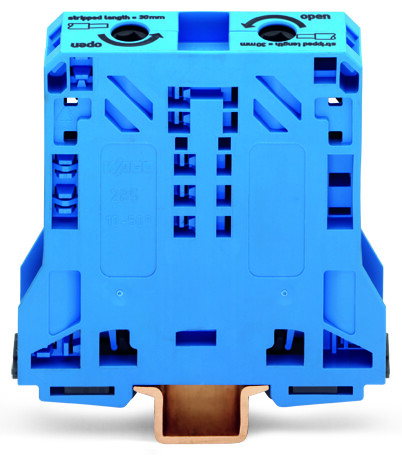

WAGO 285-154
WAGO 285-154
285-154 WAGO 285-154
InStock
InStock
Part #
285-154
Manufacturer
WAGO
GTIN
4045454507428
Condition
New
Quantity
Price
*Note:
Price:
$
24.12
Qty
1
Add to cart
1
In stock
Order by 3PM MST (subject to stock availability) same day shipping available!
TRM BLK 2-CON 50MM2 - BLUE
Got questions?
Send us a message
or call us at
1-800-335-5111
for additional assistance.
Detailed Information
Send to friend
2-Conductor through terminal block
Features
Approvals
DEKRA Certification B.V., KEMA/KEUR, 71-101911, EN 60947
American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
DEKRA Certification B.V., CCA, NTR NL-7707, EN 60947
DEKRA Certification B.V., CSA, 154112, C22.2 No. 158
Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
Underwriters Laboratories Inc., UL, E45172, UL 1059
Specifications
Notes
Safety information 1: Only suitable for DIN 35 x 15 rail
Ratings Per Iec/En
Ratings per: IEC/EN 60947-7-1
Nominal voltage (III/3): 1000 V
Rated surge voltage (III/3): 8 kV
Rated current: 150 A
Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
Ratings Per Ul
Approvals per: UL 1059
Rated voltage UL (Use Group B): 600 V
Rated current UL (Use Group B): 150 A
Rated voltage UL (Use Group C): 600 V
Rated current UL (Use Group C): 150 A
Ratings Per Csa
Approvals per: C22.2 No 158
Rated voltage CSA (Use Group B): 600 V
Rated current CSA (Use Group B): 150 A
Rated voltage CSA (Use Group C): 600 V
Rated current CSA (Use Group D): 150 A
Connection 1
Connection technology: POWER CAGE CLAMP
Actuation type: Operating tool
Connectable conductor materials: Copper
Solid conductor: 10 … 50 mm² / 8 … 1/0 AWG
Stranded conductor: 10 … 50 mm² / 8 … 1/0 AWG
Fine-stranded conductor: 10 … 70 mm² / 8 … 2/0 AWG
Fine-stranded conductor; with insulated ferrule: 10 … 50 mm² / 8 … 1/0 AWG
Fine-stranded conductor; with uninsulated ferrule: 10 … 50 mm² / 8 … 1/0 AWG
Strip length: 30 mm / 1.18 inch
Wiring direction: Side-entry wiring
Physical Data
Width: 20 mm / 0.787 inch
Height: 94 mm / 3.701 inch
Depth from upper edge of DIN-rail: 87 mm / 3.425 inch
Mechanical Data
Design: Horizontal type
Mounting type: DIN-35 rail
Marking level: Side marking
Material Data
Color: Blue
Insulation material: Polyamide (PA66)
Flammability class per UL94: V0
Fire load: 2.092 MJ
Weight: 159.050 g
Commercial Data
Packaging type: Box
Country of origin Sales Organisation Germany: PL
GTIN: 4045454507428
Customs tariff number Sales Organisation Germany: 85369010000
