Features

Approvals

• DEKRA Certification B.V., CCA, NTR NL-7707, EN 60947
• DEKRA Certification B.V., CSA, 154112, C22.2
• Underwriters Laboratories Inc., UL, E45172, UL 1059
• DEKRA Certification B.V., KEMA/KEUR, 71-101911, EN 60947
• American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947

Specifications

Notes

• Safety information 1: Only on DIN 35 x 15 rail; 2.3 mm thick, copper

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-1
• Nominal voltage (III/3): 1000 V
• Rated surge voltage (III/3): 8 kV
• Rated current: 150 A

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 600 V
• Rated current UL (Use Group B): 150 A
• Rated voltage UL (Use Group C): 600 V
• Rated current UL (Use Group C): 150 A

Ratings Per Csa

• Approvals per: C22.2 No 158
• Rated voltage CSA (Use Group B): 600 V
• Rated current CSA (Use Group B): 150 A
• Rated voltage CSA (Use Group C): 600 V
• Rated current CSA (Use Group D): 150 A

Connection 1

• Connection technology: POWER CAGE CLAMP
• Actuation type: Operating tool
• Connectable conductor materials: Copper
• Solid conductor: 10 … 50 mm² / 8 … 1/0 AWG
• Stranded conductor: 10 … 50 mm² / 8 … 1/0 AWG
• Fine-stranded conductor: 10 … 70 mm² / 8 … 2/0 AWG
• Fine-stranded conductor; with insulated ferrule: 10 … 50 mm² / 8 … 1/0 AWG
• Fine-stranded conductor; with uninsulated ferrule: 10 … 50 mm² / 8 … 1/0 AWG
• Strip length: 30 mm / 1.18 inch
• Wiring direction: Side-entry wiring

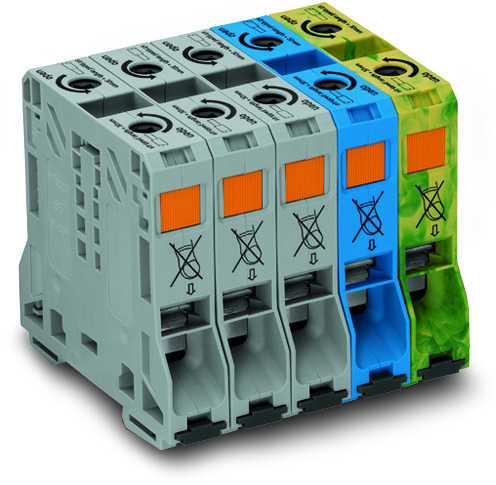

Physical Data

• Width: 100 mm / 3.937 inch
• Height: 94 mm / 3.701 inch
• Depth from upper edge of DIN-rail: 87 mm / 3.425 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Side marking

Material Data

• Color: Gray/blue/green-yellow
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 10.278 MJ
• Weight: 812.380 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454584269
• Customs tariff number Sales Organisation Germany: 85369010000
