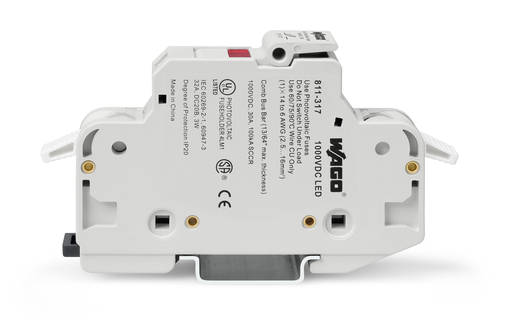

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-3
• Ratings (note): Electrical ratings are given by the fuse and blown fuse indication.
• Nominal voltage (III/3): 1000 V
• Rated current: 32 A

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Connectable conductor materials: Copper
• Solid conductor: 2.5 … 16 mm² / 14 … 6 AWG
• Fine-stranded conductor: 2.5 … 16 mm² / 16 … 6 AWG
• Strip length: 12 … 13 mm / 0.47 … 0.51 inch
• Pole No.: 1
• Wiring direction: Side-entry wiring

Physical Data

• Width: 17.5 mm / 0.689 inch
• Height: 105 mm / 4.134 inch
• Depth from upper edge of DIN-rail: 55 mm / 2.165 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Art der Sicherung: Cylindrical fuse 10/14 x 85 mm for photovoltaic applications

Material Data

• Color: Light gray
• Insulation material: Polyamide (PA66)
• Fire load: 0.000 MJ
• Weight: 65.000 g

Environmental Requirements

• Continuous operating temperature: -35 … +85 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4050821848998
• Customs tariff number Sales Organisation Germany: 85369095000
