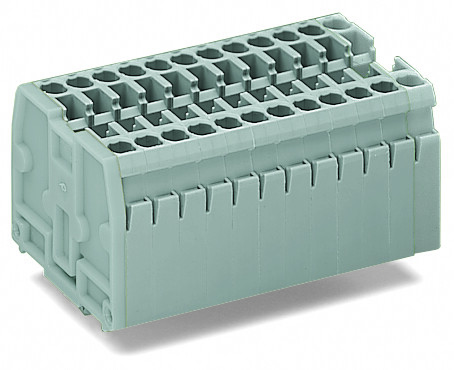

Features

Approvals

• UL International Germany GmbH, UL, E45172, UL 1059
• DEKRA Certification B.V., CCA, 2143311.02, EN 60947
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
• DEKRA Certification B.V., CCA, NTR NL 6827/A1, EN 60947
• American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947

Specifications

Notes

• Safety information 1: Max. insulation diameter: 4.4 mm

Ratings Per Iec/En

• Nominal voltage (III/3): 500 V
• Rated surge voltage (III/3): 6 kV
• Rated current: 24 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Connectable conductor materials: Copper
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.08 … 1.5 mm² / 28 … 14 AWG
• Strip length: 6 … 7 mm / 0.24 … 0.28 inch
• Pole No.: 12
• Wiring direction: Front-entry wiring

Physical Data

• Width: 62.5 mm / 2.461 inch
• Height from the surface: 27.6 mm / 1.087 inch
• Depth: 33.4 mm / 1.315 inch
• Module width: 5 mm / 0.197 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: Snap-in foot
• Marking level: Side marking

Material Data

• Color: Gray
• Flammability class per UL94: V0
• Fire load: 0.920 MJ
• Weight: 50.672 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918481328
• Customs tariff number Sales Organisation Germany: 85369010000
