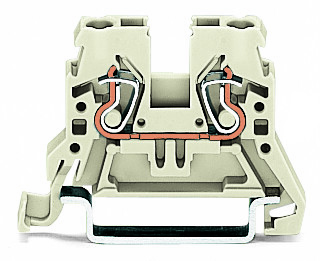

Features

Approvals

• American Bureau of Shipping, ABS, 20-HG1941090-PDA
• Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
• Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 04.0018 U Ex eb IIC Gb resp. Ex eb I Mb, IEC 60079
• CQST/CNEx, CCCEx, 2020312313000179, CNCA-C23-01
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
• DEKRA Certification B.V., CCA, 2189801.01, EN 60947
• Physikalisch Technische Bundesanstalt (PTB), ATEx, PTB 03 ATEX 1188 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, EN 60079
• UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt, AEx, E185892, UL 60079
• UL International Germany GmbH, cURus, E45172, UL 1059
• DEKRA Certification B.V., CCA, NTR NL 7468, EN 60947

Specifications

Notes

• Safety information 1: Max. insulation diameter: 4.4 mm

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-1
• Rated current: 22 A

Ex Information

• Rated voltage EN (Ex e II): 440 V

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Connectable conductor materials: Copper
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.08 … 1.5 mm² / 28 … 14 AWG
• Strip length: 6 … 7 mm / 0.24 … 0.28 inch
• Wiring direction: Front-entry wiring

Physical Data

• Width: 5 mm / 0.197 inch
• Height: 44.5 mm / 1.752 inch
• Depth from upper edge of DIN-rail: 27.5 mm / 1.083 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Side marking

Material Data

• Color: Light gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.080 MJ
• Weight: 4.313 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918691680
• Customs tariff number Sales Organisation Germany: 85369010000
