Features

• Use of the PFC200 Controller as a telecontrol substation (slave) on an IEC 60870-5-101/-104 control system (master)
• Processing data from one or more IEC 60870-5-103 protection devices (slaves) with the PFC200 controller (master)

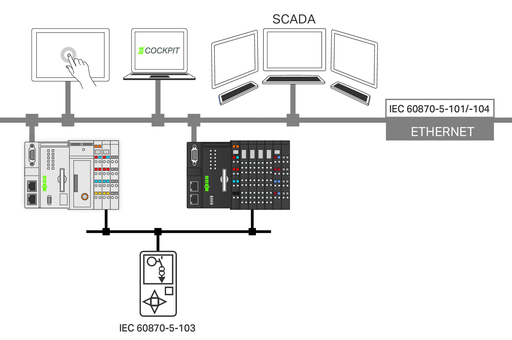

• Creation of a gateway application to transfer data from IEC 60870-5-103-protective devices to an IEC 60870-5-101/-104 control system.

Specifications

System Requirements

• Other required software: e!COCKPIT version: V1.7

Software Data

• Supported devices: 750-8210: PFC200; G2; 4ETH RS || 750-8210/025-000: PFC200; G2; 4ETH RS; T || 750-8210/040-000: PFC200; G2; 4ETH RS; XTR || 750-8217: PFC200; G2; LTE 2ETH RS || 750-8217/025-000: PFC200; G2; LTE 2ETH RS; T

Delivery

• Delivery type: License certificate via email (e!COCKPIT already contains the software itself)
• License type (note): The single license allows installation on one controller. One license per controller is required.
• Note on license type (2): A PC with both Internet connection and e!COCKPIT may be required for license activation.

Commercial Data

• Country of origin Sales Organisation Germany: QU
• GTIN: 4055144006407
• Customs tariff number Sales Organisation Germany: 88888888888
