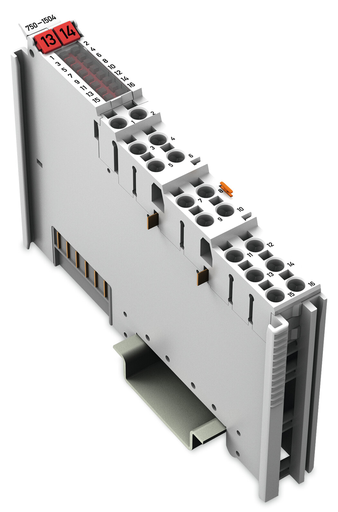

Features

Approvals

• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• Bureau Veritas S.A., BV, 30389/B0 BV
• TÜV Rheinland do Brasil Ltda., INMETRO, BR-Ex_TÜV 12.1297 X, IEC 60079
• RINA Germany GmbH, RINA, ELE066419XG
• Nippon Kaiji Kyokai, NK, TA17255M
• Lloyds Register EMEA, LR, 02/20026 (E6)
• National Radio Research Agency, KC, MSIP-REM-W43-DOM750, Article 58-2, Clause 3
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• American Bureau of Shipping, ABS, 19-HG1821926
• CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
• Korean Register of Shipping, KR, KR HMB05880-AC001
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0

Specifications

Technical Data

• Number of digital outputs: 16
• Total number of channels (module): 16
• Signal type: Voltage
• Voltage signal type: 24 VDC
• Actuator connection: 16 x (1-wire)
• Output characteristic: High-side switching
• Output current per channel: 0.5 A
• Output current: Short-circuit-protected
• Switching frequency (max.): 1 kHz
• Load type: Resistive, inductive, lamp load
• Output (internal) data width (max.): 16 bits
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 40 mA
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Power consumption, field supply (module with no external load): 29 mA
• Isolation: 500 V system/field
• Indicators: LED (1-16) green: Status DO 1 … DO 16
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Current carrying capacity (power jumper contacts): 10 A

Connection Data

• Connection technology: inputs/outputs: 16 x Push-in CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Conductor type 1: F-st
• Conductor type 2: S || Solid
• Conductor type (1): Fine-stranded

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 100 mm / 3.937 inch
• Depth: 69 mm / 2.717 inch
• Depth from upper edge of DIN-rail: 61.8 mm / 2.433 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Wiring interface: Fixed

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 1.045 MJ
• Weight: 50.000 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-3, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454905576
• Customs tariff number Sales Organisation Germany: 85371098990
