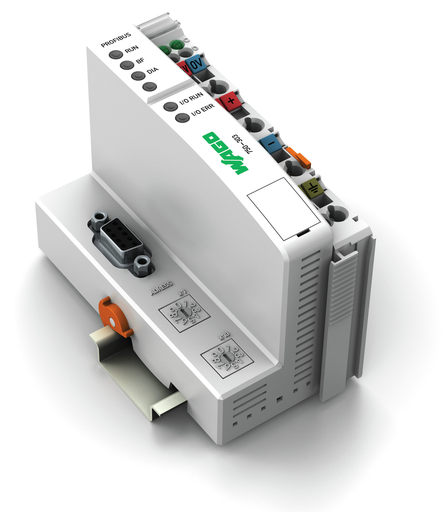

Features

Approvals

• TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• Bureau Veritas S.A., BV, 13453/DO BV
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• Korean Register of Shipping, KR, KR HMB05880-AC001
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
• National Radio Research Agency, KC, MSIP-REM-W43-FBC750, Article 58-2, Clause 3
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• American Bureau of Shipping, ABS, 19-HG1821926
• CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
• RINA Germany GmbH, RINA, ELE066419XG
• Lloyds Register EMEA, LR, 02/20026 (E6)
• TÜV Rheinland do Brasil Ltda., INMETRO, BR-Ex_TÜV 12.1297 X, IEC 60079
• Nippon Kaiji Kyokai, NK, TA17255M

Specifications

Notes

• Note: For new installations, please consider 750-333 PROFIBUS DP fieldbus coupler with extended functionality.Note: Configuration files required (GSD)!

Technical Data

• Communication: PROFIBUS
• Number of fieldbus nodes on master (max.): 96
• Number of I/O points: 6000
• Baud rate: 9.6 kBd … 12 MBd
• Bus segment length (max.): 1200 m
• Transmission medium: Cu cable per EN 50170
• Transmission time: Typ. 1 ms (10 couplers; each 32 digital I/O and 12 Mbaud) max. 3.3 ms
• Number of modules per node (max.): 64
• Input and output (fieldbus) process image (max.): 128 Byte/128 Byte
• Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
• Power consumption (5 V system supply): 350 mA
• Total current (system supply): 1650 mA
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
• Input current (typ.) at nominal load (24 V): 500 mA
• Power supply efficiency (typ.) at nominal load (24 V): 87 %
• Isolation: 500 V system/field
• Number of outgoing power jumper contacts: 3
• Current carrying capacity (power jumper contacts): 10 A
• Certification: PNO
• Standard: EN 50170

Connection Data

• Connection technology: communication/fieldbus: PROFIBUS: 1 x D-sub 9 socket
• Connection technology: field supply: 6 x CAGE CLAMP®
• Connection technology: system supply: 2 x CAGE CLAMP®
• Connection technology: device configuration: 1 x Male connector; 4-pole
• Connection type (1): System/field supply
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 50.5 mm / 1.988 inch
• Height: 100 mm / 3.937 inch
• Depth: 71.1 mm / 2.799 inch
• Depth from upper edge of DIN-rail: 63.9 mm / 2.516 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 3.544 MJ
• Weight: 185.202 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-4, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454659431
• Customs tariff number Sales Organisation Germany: 85176200000
