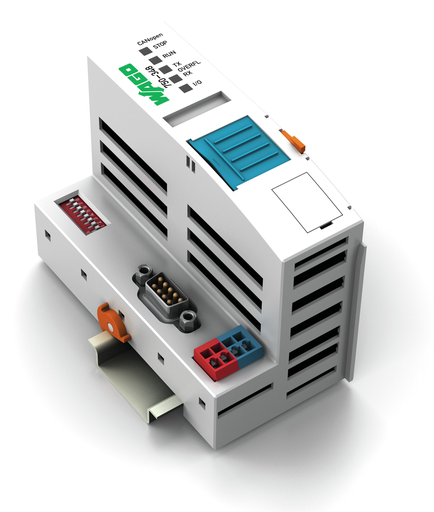

Features

Approvals

• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
• TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
• TÜV Rheinland do Brasil Ltda., INMETRO, BR-Ex_TÜV 12.1297 X, IEC 60079
• Bureau Veritas S.A., BV, 30389/B0 BV
• TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• Nippon Kaiji Kyokai, NK, TA17255M
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• American Bureau of Shipping, ABS, 19-HG1821926
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• Korean Register of Shipping, KR, KR HMB05880-AC001
• National Radio Research Agency, KC, MSIP-REM-W43-FBC750, Article 58-2, Clause 3
• Lloyds Register EMEA, LR, 02/20026 (E6)
• RINA Germany GmbH, RINA, ELE066419XG

Specifications

Notes

• Note: Note: Configuration files required (EDS)!

Technical Data

• Communication: CANopen
• Number of fieldbus nodes on master (max.): 110
• Baud rate: 10 kBd … 1 MBd
• Bus segment length (max.): 1000 m
• Transmission medium: Shielded Cu cable 3 x 0.25 mm²
• Number of modules per node (max.): 64
• Other CANopen features: NMT slave || Minimum boot-up || Variable PDO mapping || Emergency message || Life guarding
• Number of PDOs: 5 Tx / 5 Rx
• Number of SDOs: 1 SDO server
• COB ID distribution: SDO, standard
• Node ID distribution: DIP switch
• Communication profile: DS-301 V4.1
• Device profile: DS-401 V2.0 || Configurable response in the event of an error
• Input and output (fieldbus) process image (max.): 32 Byte/32 Byte
• Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector
• Power consumption (5 V system supply): 350 mA
• Total current (system supply): 650 mA
• Input current (typ.) at nominal load (24 V): 260 mA
• Power supply efficiency (typ.) at nominal load (24 V): 80 %

Connection Data

• Connection technology: communication/fieldbus: CANopen: 1 x D-sub 9 plug
• Connection technology: system supply: 4 x CAGE CLAMP®
• Connection technology: device configuration: 1 x Male connector; 4-pole
• Connection type (1): System supply
• Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch
• Note (conductor cross-section): 14 AWG: THHN, THWN

Physical Data

• Width: 49.5 mm / 1.949 inch
• Height: 96.8 mm / 3.811 inch
• Depth: 71.9 mm / 2.831 inch
• Depth from upper edge of DIN-rail: 64.7 mm / 2.547 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 2.928 MJ
• Weight: 115.000 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-4, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454395964
• Customs tariff number Sales Organisation Germany: 85176200000
