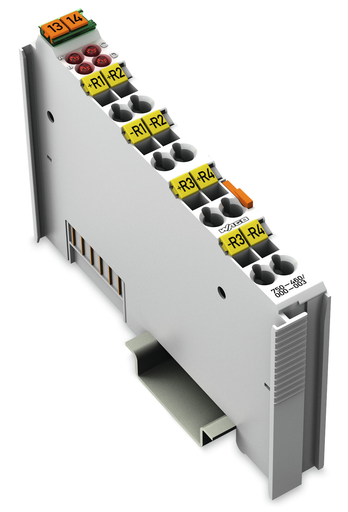

Features

Approvals

• National Radio Research Agency, KC, MSIP-REM-W43-AIM750, Article 58-2, Clause 3
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508

Specifications

Technical Data

• Number of analog inputs: 4
• Total number of channels (module): 4
• Signal type: Resistance measurement
• Sensor connection: 4 x (2-wire)
• Data width: 4 x 16-bit data; 4 x 8-bit control/status (optional)
• Resolution (over entire range): 0.1 °C
• Conversion time (typ.): 250 ms
• Measurement error (reference temperature): 25 °C
• Measurement error – deviation (max.) from the upper-range value: 0.2 %
• Temperature error (max.) of the upper-range value: 0.01 %/K
• Measured current (typ.): 0.5 mA
• Sensor types: Pt1000
• Temperature range: −200 … +850 °C
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 65 mA
• Isolation: 500 V system/field

Connection Data

• Connection technology: inputs/outputs: 8 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 100 mm / 3.937 inch
• Depth: 69.8 mm / 2.748 inch
• Depth from upper edge of DIN-rail: 62.6 mm / 2.465 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 0.085 MJ
• Weight: 51.800 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454848958
• Customs tariff number Sales Organisation Germany: 85389099990
