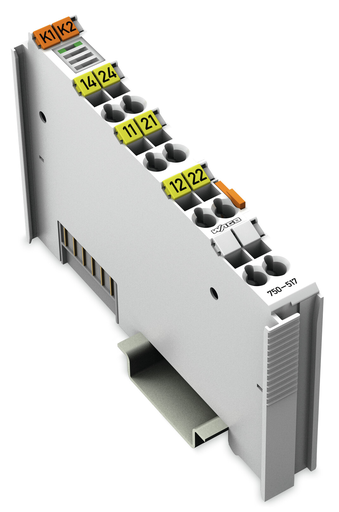

Features

Approvals

• Nippon Kaiji Kyokai, NK, TA17255M
• RINA Germany GmbH, RINA, ELE066419XG
• Lloyds Register EMEA, LR, 02/20026 (E6)
• Bureau Veritas S.A., BV, 13453/DO BV
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
• National Radio Research Agency, KC, MSIP-REM-W43-DOM750, Article 58-2, Clause 3
• Korean Register of Shipping, KR, KR HMB05880-AC001
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
• CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• American Bureau of Shipping, ABS, 19-HG1821926
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194

Specifications

Technical Data

• Number of digital outputs: 2
• Total number of channels (module): 2
• Actuator connection: 2 x (1-wire)
• Output circuit design: 2 changeover contacts || Relays
• Output characteristic: Potential-free
• Switching frequency (max.): 0.1 Hz; Nominal load
• Load type of switching frequency: Nominal load
• Switching voltage (max.): 250 VAC, 300 VDC
• Switching current (max.): 1 A
• Switching current (note): 1 A at 250 VAC and 40 VDC; 0.15 A at 300 VDC
• Switching voltage (min.): 12 V
• Switching current (min.): 100 mA
• Pull-in time (max.): 8 ms
• Drop-out time (max.): 4 ms
• Electrical switching operations (min.) (at max. resistive load): 1 x 106 switching operations
• Mechanical switching operations (min.) (at max. resistive load): 5 x 106 switching operations
• Output (internal) data width (max.): 2 bits
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 90 mA
• Isolation: 1500 V (system/field)
• Indicators: LED (A, E) green: Status relay 1, relay 2

Connection Data

• Connection technology: inputs/outputs: 8 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 100 mm / 3.937 inch
• Depth: 67.8 mm / 2.669 inch
• Depth from upper edge of DIN-rail: 60.6 mm / 2.386 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Wiring interface: Fixed

Material Data

• Color: Light gray
• Contact material: Ag alloy
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 0.880 MJ
• Weight: 52.363 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-4, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454393519
• Customs tariff number Sales Organisation Germany: 85371098990
