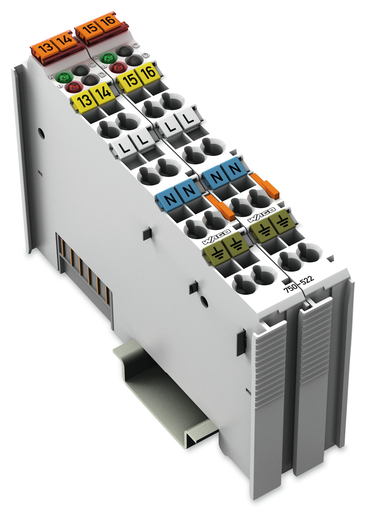

Features

Approvals

• TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
• TÜV Rheinland do Brasil Ltda., INMETRO, BR-Ex_TÜV 12.1297 X, IEC 60079
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011

Specifications

Technical Data

• Number of digital outputs: 2
• Total number of channels (module): 2
• Signal type: Voltage
• Voltage signal type: 35 … 230 VAC
• Actuator connection: 2 x (2-wire, 3-wire)
• Output circuit design: Solid-state load relays || 2 make contacts
• Output current per channel: 0.5 A
• Protection against incorrect wiring: Overvoltage protection (275 V) via varistor
• Leakage current in OFF state: 2300 µA
• Switching frequency (max.): 50 Hz
• Switching current (min.): 50 mA
• Making capacity (current/time): 3 A (30 s)
• Making capacity (current/time) (2): 18 A (0.1 s)
• Operating speed (max.): 15 ms
• Operating speed (typ.): 1.65 ms
• Input data width (internal) (max.): 2 bits
• Output (internal) data width (max.): 2 bits
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 40 mA
• Supply voltage (field): 230 VAC; via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Isolation (field/system): 3000 VAC (1 min)
• Indicators: LED (A1, A2) green: Status DO 1, DO 2; LED (B1, B2) red: Error DO 1, DO 2
• Number of incoming power jumper contacts: 3
• Number of outgoing power jumper contacts: 3
• Current carrying capacity (power jumper contacts): 10 A

Connection Data

• Connection technology: inputs/outputs: 8 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 24 mm / 0.945 inch
• Height: 69.8 mm / 2.748 inch
• Height from upper-edge of DIN-rail: 62.6 mm / 2.465 inch
• Depth: 100 mm / 3.937 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 3.360 MJ
• Weight: 107.288 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -25 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Mounting position: Any
• Relative humidity (without condensation): 95 %
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454393540
• Customs tariff number Sales Organisation Germany: 85371098990
