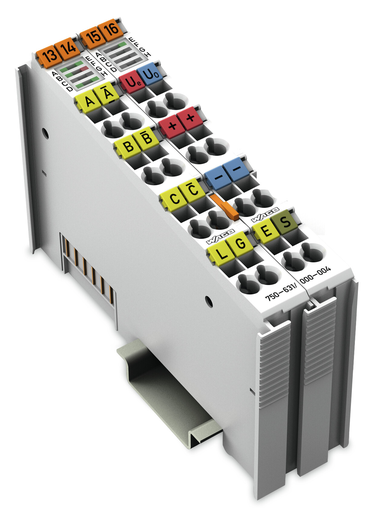

Features

Approvals

• National Radio Research Agency, KC, MSIP-REM-W43-DAM750, Article 58-2, Clause 3
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201

Specifications

Technical Data

• Counter depth: 16 bits
• Transmitter connection: A, /A, B, /B, C, /C (RS-422 inputs)
• Supply voltage (transmitter): 5 VDC
• Transmitter supply current (max.): 200 mA
• Zero impulse (latch): 16 bits
• Quadrature decoder: 4x evaluation
• Voltage range for signal (0): UABC = 0 V, UABC/ = 5 V; Latch, gate ≤ 5.0 V; External error U ≥ 5.0 V or open input
• Voltage range for signal (1): UABC = 5 V, UABC/ = 0 V; Latch, gate ≥ 15.0 V; External error U < 0.5 V
• Data width: 2-byte output; 5-byte input; 2x 8-bit control/status (optional); 3 additional output bytes (reserved)
• Limit frequency: 1000 kHz
• Commands: Reading, setting, activating
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 50 mA
• Power consumption, field supply (module with no external load): 10 mA
• Isolation: 500 V system/field

Connection Data

• Connection technology: inputs/outputs: 16 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 24 mm / 0.945 inch
• Height: 100 mm / 3.937 inch
• Depth: 69.8 mm / 2.748 inch
• Depth from upper edge of DIN-rail: 62.6 mm / 2.465 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 0.170 MJ
• Weight: 92.100 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821248309
• Customs tariff number Sales Organisation Germany: 85389099990
