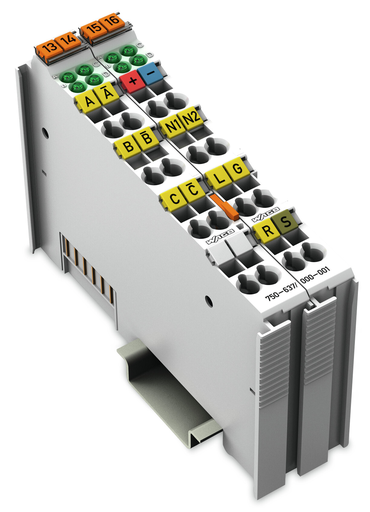

Features

Approvals

• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• TÜV Rheinland do Brasil Ltda., INMETRO, BR-Ex_TÜV 12.1297 X, IEC 60079
• National Radio Research Agency, KC, MSIP-REM-W43-DAM750, Article 58-2, Clause 3
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
• CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
• TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0

Specifications

Technical Data

• Counter depth: 32 bits
• Transmitter connection: A, /A, B, /B, C, /C
• Supply voltage (transmitter): 24 VDC
• Transmitter supply current (max.): 300 mA
• Zero impulse (latch): 32 bits
• Quadrature decoder: 4x evaluation
• Input current (typ.): Latch 5 mA, Gate 7 mA, Ref. 7 mA
• Output current per channel: 0.5 A
• Output current: Short-circuit-protected
• Output voltage: 24 VDC
• Voltage range for signal (0): (UABC - UABC/): -30 … +15 VDC; Latch, gate, ref.: -3 … +5 VDC
• Voltage range for signal (1): (UABC - UABC/): 15 … 30 VDC; Latch, gate, ref.: 15 … 30 VDC
• Data width: 1 x 32-bit data 2 x 8-bit control/status
• Limit frequency: 250 kHz
• Commands: Reading, setting, activating
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 110 mA
• Power consumption, field supply (module with no external load): 35 mA
• Isolation: 500 V system/field

Connection Data

• Connection technology: inputs/outputs: 16 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 24 mm / 0.945 inch
• Height: 100 mm / 3.937 inch
• Depth: 69.8 mm / 2.748 inch
• Depth from upper edge of DIN-rail: 62.6 mm / 2.465 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 2.011 MJ
• Weight: 100.051 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-4, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454925185
• Customs tariff number Sales Organisation Germany: 85389099990
