Features

Approvals

• RINA Germany GmbH, RINA, ELE066419XG
• Nippon Kaiji Kyokai, NK, TA17255M
• CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
• TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
• TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201

Specifications

Technical Data

• Device-specific: Bit skew: < 3 %; RS-232-C line length (max.): 15 m
• Baud rate: 4.8 kBd
• Transmission channels: 1 TxD / 1 RxD, full-duplex
• Data width: 1 x 24-bit input/output (3-byte user data); 1 x 8-bit control/status
• Buffer: 120-byte input / 16-byte output
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 55 mA
• Isolation: 500 V system/field

Connection Data

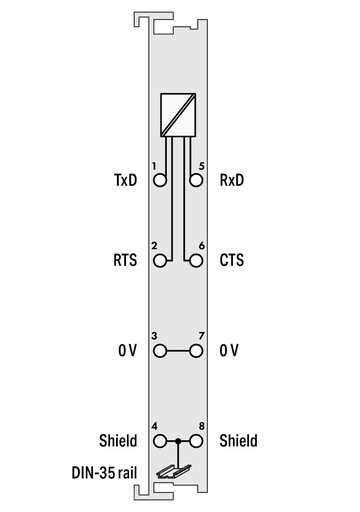

• Connection technology: inputs/outputs: 8 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 69.8 mm / 2.748 inch
• Height from upper-edge of DIN-rail: 62.6 mm / 2.465 inch
• Depth: 100 mm / 3.937 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 1.171 MJ
• Weight: 47.768 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -25 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Mounting position: Any
• Relative humidity (without condensation): 95 %
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-4, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454394073
• Customs tariff number Sales Organisation Germany: 85389099990
