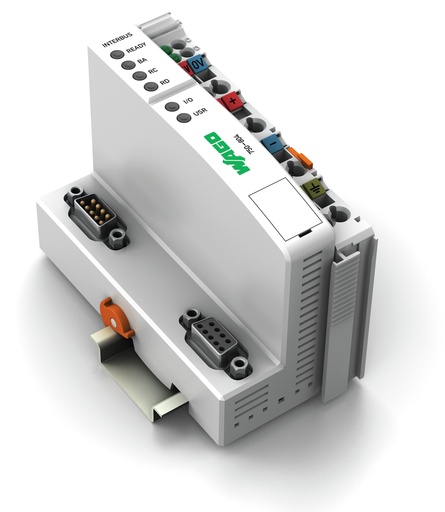

Note: The INTERBUS files can be downloaded for free at www.wago.com.
Technical Data
Communication: INTERBUS
Visualization: Without
Programming languages per IEC 61131-3: Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
Programming environment: WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
Cycle time: < 3 ms for 1000 bit instructions/ 256 digital I/O
Baud rate: 500 kBd
Bus segment length (max.): 400 m
Transmission medium (communication/fieldbus): Certified Cu cable
Transmission time: 1.43 ms (10 controllers; each 32 digital I/O)
Number of fieldbus nodes on master (max.): 256
Number of I/O points: 4096
Program memory: 128 kByte
Data memory: 64 kByte
Non-volatile software memory: 8 kB
Memory for fieldbus input variables (max.): 64 Byte
Memory for fieldbus output variables (max.): 64 Byte
Number of modules per node (max.): 64
Input and output (fieldbus) process image (max.): 64 Byte/64 Byte
Indicators: LED (READY, BA, RC) green: Device status, remote bus active, connection established; LED (RD) red: Device error; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply
Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
Input current (typ.) at nominal load (24 V): 500 mA
Power supply efficiency (typ.) at nominal load (24 V): 87 %
Power consumption (5 V system supply): 400 mA
Total current (system supply): 1600 mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
Current carrying capacity (power jumper contacts): 10 A
Number of outgoing power jumper contacts: 3
Isolation: 500 V system/supply
Standard: EN 50254
Connection Data
Connection technology: communication/fieldbus: INTERBUS: 1 x D-sub 9 plug/socket
Connection technology: system supply: 2 x CAGE CLAMP®
Connection technology: field supply: 6 x CAGE CLAMP®
