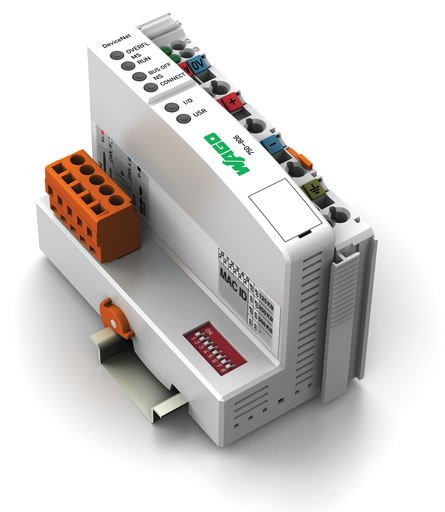

Specifications
Notes
Note: Note: Configuration files required (EDS)!The EDS files can be downloaded for free at www.wago.com.
Technical Data
Communication: DeviceNet
Visualization: Without
CPU: 16 bits
Programming languages per IEC 61131-3: Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
Programming environment: WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
Cycle time: < 3 ms for 1000 bit instructions/ 256 digital I/O
Baud rate: 500 kBd (125 kBd, 250 kBd, 500 kBd)
Bus segment length (max.): 500 m
Transmission medium (communication/fieldbus): Shielded Cu cable; Remote bus cable: 2 x 0.82 mm² + 2 x 1.7 mm²; Drop cable: 2 x 0.2 mm² + 2 x 0.32 mm²
Number of fieldbus nodes on master (max.): 64
Number of I/O points: 6000
Program memory: 128 kByte
Data memory: 64 kByte
Non-volatile software memory: 8 kB
Memory for fieldbus input variables (max.): 512 Byte
Memory for fieldbus output variables (max.): 512 Byte
Number of modules per node (max.): 64
Input and output (fieldbus) process image (max.): 1024 Byte/1024 Byte
DeviceNet features: Polled I/O Message Connection || Strobed I/O Message Connection || Change of State || Cyclic Message Connection || UCMM using function blocks || DeviceNet master can be programmed
Indicators: LED (OVERF) red: device error; LED (RUN) green: Device status; LED (BUS OFF) red: Network error ; LED (CONNECT) green: Network status; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply
Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
Input current via DeviceNet interface at 11 V: 120 mA
Input current (typ.) at nominal load (24 V): 500 mA
Power supply efficiency (typ.) at nominal load (24 V): 87 %
Power consumption (5 V system supply): 350 mA
Total current (system supply): 1650 mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
Current carrying capacity (power jumper contacts): 10 A
Number of outgoing power jumper contacts: 3
Isolation: 500 V system/field
Connection Data
Connection technology: communication/fieldbus: DeviceNet: 1 x Male connector; 5-pole
Connection technology: system supply: 2 x CAGE CLAMP®
Connection technology: field supply: 6 x CAGE CLAMP®
