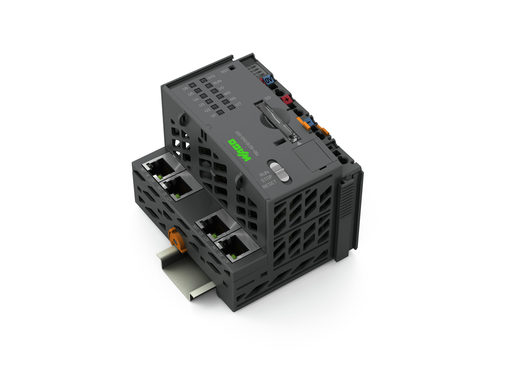

Features

• Programming per IEC 61131-3
• Programmable via WAGO-I/O-PRO V2.3 or e!COCKPIT
• Direct connection of WAGO I/O modules
• 4 x ETHERNET (configurable)
• Linux® operating system with RT‐Preempt patch
• Configuration via CODESYS, e!COCKPIT or Web-Based Management user interface
• Maintenance-free
• Extended temperature range
• Greater immunity to impulse voltages and electromagnetic interference
• Higher vibration and shock resistance

Approvals

• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00000Y7, DNVGL-CG-339,Dec.2019
• Underwriters Laboratories Inc., UL, E175199 Sec11, UL 61010-2-201

Specifications

Technical Data

• Communication: Modbus (TCP, UDP) || ETHERNET || EtherNet/IPTM Adapter (slave), library for e!RUNTIME || Modbus® RTU || MQTT || EtherCAT Master, requires an additional license || BACnet/IP, requires an additional license || Telecontrol protocols (requires an additional license on the device)
• ETHERNET protocols: DHCP || DNS || NTP || FTP || FTPS || SNMP || HTTP || HTTPS || SSH
• Telecontrol protocols: IEC 60870-5-101/-103/-104 (additional license as slave or master) || IEC-61850 (additional license as Client 300) || DNP3 (additional license as Slave or Master 300)
• Visualization: Web Visu
• Operating system: Real-time Linux (with RT-Preempt patch)
• CPU: Cortex A8; 1 GHz
• Programming languages per IEC 61131-3: Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
• Programming environment: e!COCKPIT (based on CODESYS V3) || WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
• Configuration options: e!COCKPIT || WAGO-I/O-CHECK || Web-Based Management || e!RUNTIME Library || CODESYS Library
• Baud rate (communication/fieldbus 1): 10/100 Mbit/s
• Baud rate: ETHERNET: 10/100 Mbit/s
• Transmission medium (communication/fieldbus): ETHERNET: Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
• Main memory (RAM): 512 MB
• Internal memory (flash): 4096 MB
• Non-volatile hardware memory: 128 kB
• Program memory: CODESYS V2: 16 MB; e!RUNTIME: 32 MB
• Data memory: CODESYS V2: 64 MB; e!RUNTIME: 128 MB
• Non-volatile software memory: 128 kB || 128 kB
• Memory card type: SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO Memory Card)
• Memory card slot: Push-push mechanism; Cover lid (sealable)
• Number of modules per node (max.): 64
• Input and output (internal) process image (max.): 1000 Worte/1000 Worte
• Input and output (MODBUS) process image (max.): CODESYS V2: 1000 Worte/1000 Worte; e!RUNTIME: 32000 Worte/32000 Worte
• Indicators: LED (SYS, RUN, I/O, U1 … U7) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library); LED (A, C) green: Status of system power supply, field supply
• Derating: Derating (supply voltage): Surrounding air temperatures under laboratory conditions: (-25 … +30 %); for -40 … +55 °C: 24 V (-25 … +20 %); for +55 … +70 °C: 24 V (-25 … +10 %); Lower limit in all temperature ranges: −27.5 % (including 15 % residual ripple)
• Supply voltage (system): 24 VDC; via pluggable connector (CAGE CLAMP® connection); Derating must be observed!
• Input current (typ.) at nominal load (24 V): 500 mA
• Total current (system supply): 1700 mA
• Supply voltage (field): 24 VDC; Power supply via pluggable connector (CAGE CLAMP® connection); Transmission via power jumper contacts; Derating must be observed!
• Current carrying capacity (power jumper contacts): 10 A
• Number of outgoing power jumper contacts: 2
• Rated surge voltage: 1 kV

Connection Data

• Connection technology: communication/fieldbus: Modbus TCP/UDP: 4 x RJ-45
• Connection technology: system supply: 2 x CAGE CLAMP®
• Connection technology: field supply: 4 x CAGE CLAMP®
• Connection type (1): System/field supply
• Solid conductor: 0.25 … 2.5 mm² / 24 … 14 AWG
• Fine-stranded conductor: 0.25 … 2.5 mm² / 24 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Connection technology: device configuration: 1 x Male connector; 4-pole

Physical Data

• Width: 78.6 mm / 3.094 inch
• Height: 100 mm / 3.937 inch
• Depth: 71.9 mm / 2.831 inch
• Depth from upper edge of DIN-rail: 64.7 mm / 2.547 inch

Mechanical Data

• Weight: 226.301 g
• Color: Dark gray
• Housing material: Polycarbonate; polyamide 6.6
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): -40 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Relative humidity (without condensation): 95 %
• Relative humidity (with condensation): Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
• Mounting position: Horizontal (standing/lying); vertical
• Mounting type: DIN-35 rail
• Vibration resistance: Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
• Shock resistance: Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
• EMC immunity to interference: Per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
• EMC emission of interference: Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Fire load: 0.378 MJ

Commercial Data

• Country of origin Sales Organisation Germany: DE
• GTIN: 4055144000634
• Customs tariff number Sales Organisation Germany: 85371091990
