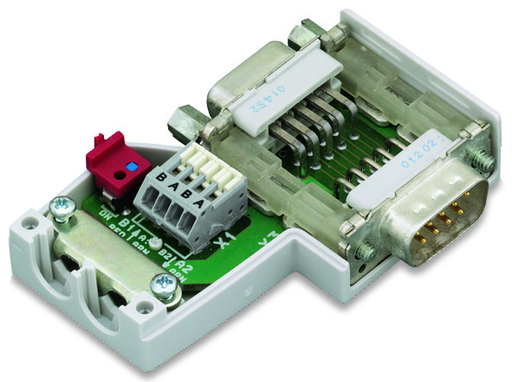

Features

• Two horizontal cable entries for both input and output.
• Fast and maintenance-free CAGE CLAMP® connection – a locking slide keeps the clampling unit in its open position
• Externally operable switch to activate or deactivate the network terminating resistor
• PG interface

Approvals

• Polski Rejestr Statków, PRS, TE/2236/880590/19
• Korean Register of Shipping, KR, KR HMB05880-AC001
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• American Bureau of Shipping, ABS, 19-HG1821926
• Nippon Kaiji Kyokai, NK, TA17255M
• Lloyds Register EMEA, LR, 02/20026 (E6)
• RINA Germany GmbH, RINA, ELE066419XG
• Bureau Veritas S.A., BV, 13453/DO BV
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508

Specifications

Technical Data

• Connection type: D-sub 9 plug
• Communication/fieldbus: PROFIBUS
• Baud rate: 12 Mbit/s (per PROFIBUS specification)

Connection Data

• Connection type (1): CAGE CLAMP® terminal strip with locking slide (218 Series)
• Solid conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

• Depth: 65 mm / 2.56 inch

Mechanical Data

• Connectable sheathed cable diameter: 4.5 … 8 mm
• Weight: 42.000 g
• Color: Light gray

Environmental Requirements

• Surrounding air temperature (operation): 0 … 60 °C
• Surrounding air temperature (storage): -25 … 85 °C
• Protection type: IP20
• Relative humidity (without condensation): 95 %
• Fire load: 0.000 MJ

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454345075
• Customs tariff number Sales Organisation Germany: 85366990990
