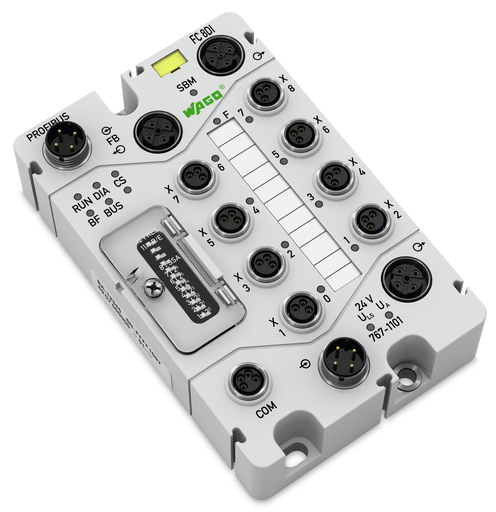

Features

• 1 x module marker (WMB), yellow
• 1 x channel marking strip
• 2 x M8 protective cap

Approvals

• UL International Germany GmbH, UL, E175199 Sec.5, UL 508
• DEKRA EXAM GmbH, IECEx, IECEx_BVS_15.0083_X, IEC 60079-0
• DEKRA EXAM GmbH, ATEX, BVS_15_ATEX_E_098_X, EN 60079-0

Specifications

Technical Data

• Communication: PROFIBUS
• Number of expandable modules: 63
• Number of digital inputs: 8
• Total number of channels (module): 8
• Signal type: Voltage
• Sensor connection: 8 x (2-wire, 3-wire)
• Input characteristic: High-side switching || Type 1, per IEC 61131-2
• Input filter (digital): 0.1 ms || 0.5 ms || 3 ms || 15 ms || 20 ms
• Input current per channel for signal (1) (typ.): 2.8 mA
• Voltage range for signal (0): −3 … +5 VDC
• Voltage range for signal (1): 15 … 30 VDC
• Baud rate: 9.6 kBd … 12 MBd
• Transmission medium: RS-485 / 2-core copper cable per IEC 61158 and EN50170
• Parameterizable functions: I/O diagnostics (per module): Short circuit/overload (encoder supply); Undervoltage (ULS + UA) || Online simulation (per module): Diagnostics || Online simulation (per channel): Lock/Unlock; Simulation value: 0/1 || Input filter (per channel): 0.1/ 0.5/ 3 /15 /20 ms/ Filter "Off" || Inversion (per channel): On/Off
• Protection: Reverse voltage protection for ULS + Uo; Short circuit protection for sensor supply
• Station addresses: 0 … 125 (adjustable via operation panel or PROFIBUS)
• Input and output (fieldbus) process image (max.): 244 Byte/244 Byte
• Supply voltage (system and sensor): 24 VDC(-25 … +30 %); Logic and sensors (ULS)
• Power consumption (system and sensor): 110 mA
• Power consumption, system and sensor (note): + sensors (max. 400 mA)
• Supply voltage (field): 24 VDC (-25 … +30 %); Actuators (UA), for transmission only
• Power consumption, field supply (module with no external load): 5 mA
• Isolation: 500 V supply/system bus/fieldbus
• Indicators: LED (BF, DIA, BUS, F) red: Bus error, fieldbus diagnostics, configuration error, input error status; LED (RUN, SBM, CS) green/red: Fieldbus coupler initialization, system bus master, fieldbus coupler status; LED (ULS, UA) green: Power supply status; LED (0 … 7) yellow: Status DI 1 … DI 8; Non-retentive displays
• Current carrying capacity (supply connections): 8 A

Connection Data

• Connection technology: communication/fieldbus: PROFIBUS: 1 x M12 socket; 4-pole; B-coded
• Connection technology: inputs/outputs: 8 x M8 socket; 3-pole
• Connection technology: field supply: 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket, 4-pole, A-coded
• Connection technology: system supply: 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded
• Connection technology: system bus: 1 x M12 socket, 5-pole, B-coded, shielded
• Connection technology: device configuration: 1 x M8 socket; 4-pole (USB standard 1.1)
• Connection requirement, permissible cable length: 30 m
• Connection requirement (permissible cable type): Digital inputs: unshielded

Physical Data

• Width: 75 mm / 2.953 inch
• Height: 35.7 mm / 1.406 inch
• Depth: 117 mm / 4.606 inch

Material Data

• Color: Light gray
• Housing material: Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free
• Fire load: 0.000 MJ
• Weight: 380.000 g
• Conformity marking: CE
• Encapsulation: Polyurethane (PUR), halogen/silicon-free

Environmental Requirements

• Surrounding air temperature (operation): -25 … 60 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP67
• Protection class: III
• Operating altitude: −1000 … 2000 m; Air pressure: 1080 … 795 hPa
• Relative humidity (without condensation): 95 %
• Vibration resistance: 5g per IEC 60068-2-6
• Shock resistance: Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4
• Permissible H2S contaminant concentration at a relative humidity 75 %: 0.1 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 0.5 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454545093
• Customs tariff number Sales Organisation Germany: 85176200000
