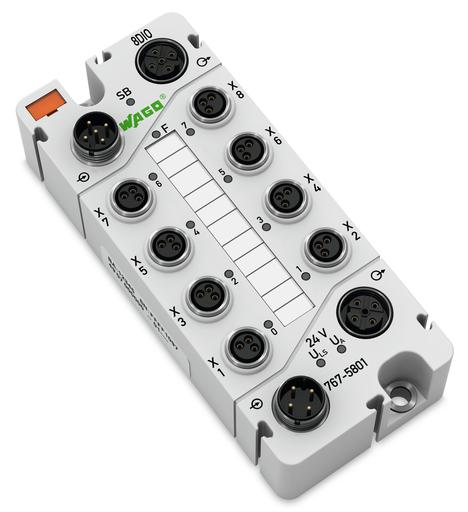

Features

• Eight digital inputs/outputs, 24 VDC / 0.5 A
• Input/output, parameterizable (channel by channel)
• Diagnostic-capable (for each channel/module)
• Parameterizable (operating mode, incl. counter, filter, inversion, substitute value strategy, substitute value, manual mode, online simulation and diagnostics)
• 1 x WMB marker, orange
• 1 x marking strip
• 2 x M8 protective cap

Approvals

• UL International Germany GmbH, UL, E175199 Sec.5, UL 508

Specifications

Technical Data

• Number of digital inputs: 8
• Number of digital outputs: 8
• Number of configurable digital inputs/outputs: 8
• Number of counters: 2
• Total number of channels (module): 8
• Signal type: Voltage
• Voltage signal type: 24 VDC
• Counter type: Event/Gate time counter, pulse duration
• Counting/switching frequency: 0 Hz … 1 kHz
• Sensor connection: 8 x (2-wire, 3-wire)
• Actuator connection: 8 x (2-wire, 3-wire)
• Input characteristic: High-side switching || Type 2, per IEC 61131-2
• Input filter (digital): 0.1 ms || 0.5 ms || 3 ms || 15 ms || 20 ms
• Input filter: Hardware: ≤ 110 µs; Software: parameterizable
• Input current per channel for signal (0) (max.): 2.7 mA
• Input current per channel for signal (1) (typ.): 7 mA
• Input current per channel for signal (1) (min.): 6.8 mA
• Input current per channel for signal (1) max.: 7.1000000000000005 mA
• Output characteristic: High-side switching
• Output current per channel: 0.5 A
• Output current (module): 4 A
• Output current: Short-circuit/overload-protected
• Leakage current in OFF state: 5 µA
• Switching frequency (max.): 500 Hz; Inductive load
• Switching frequency (max.) (2): 20 Hz; Resistive load
• Switching frequency (max.) (3): 500 Hz; Lamp load
• Load type: Resistive, inductive, lamp load
• Voltage range for signal (0): −3 … +5 VDC
• Voltage range for signal (1): 11 … 30 VDC
• Load type of switching frequency: Inductive load
• Process data width: Depends on operating mode
• Parameterizable functions: I/O diagnostics (per module): Short circuit/overload (sensor/actuator supply); Undervoltage (ULS + UA) || I/O diagnostics (per channel): Overtemperature || Online simulation (per module): Diagnostics || Online simulation (per channel): Lock/Unlock; Simulation value: 0/1; Diagnostics || Operating mode (per module): DO module/DI module/DIO module/DIO module + 1 counter/DIO module + 2 counters || Input filter (per channel): 0.1/ 0.5/ 3 /15 /20 ms/ Filter "Off" || Inversion (per channel): On/Off || Substitute value (per channel): 0/1 || Substitute value strategy (per channel): Switch substitute value/Hold last value || Manual mode (per channel): On/Off || Manual mode value (by channel): 0/1
• Protection: Reverse voltage protection for ULS + Uo; Short circuit protection for sensor/actuator supply
• Output resistance: 0.4 Ω
• Supply voltage (system and sensor): 24 VDC(-25 … +30 %); Logic and sensors (ULS)
• Power consumption (system and sensor): 45 mA
• Power consumption, system and sensor (note): Logic component only
• Supply voltage (field): 24 VDC (-25 … +30 %); Actuators (UA)
• Power consumption, field supply (module with no external load): 75 mA
• Isolation: 500 V supply/system bus
• Indicators: LED (F) red: Error status; LED (SB) green/red/orange: System bus status; LED (ULS, UA) green: Power supply status; LED (0 … 7) yellow/red: Status/diagnostics DI/DO 1 … DI/DO 8; Non-retentive displays
• Current carrying capacity (supply connections): 8 A
• Drop-out time from “1” to “0”: Typ. 45 µs (resistive load)
• Connection of 2-wire BEROs: Admissible closed current: 1.5 mA (max.)
• Rise time from “0” to “1”: Typ. 60 µs (resistive load)
• Output operation: Non-retentive
• Protection against reverse voltages: 0.5 A
• Voltage drop against UA: 0.2
• S-bus (system bus) disruption: 0 V status

Connection Data

• Connection technology: inputs/outputs: 8 x M8 socket; 3-pole
• Connection technology: field supply: 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket, 4-pole, A-coded
• Connection technology: system supply: 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded
• Connection technology: system bus: 1 x M12 socket, 5-pole, B-coded, shielded; 1 x M12 plug, 5-pole, B-coded, shielded
• Connection requirement, permissible cable length: 30 m
• Connection requirement (permissible cable type): Digital inputs/outputs: unshielded

Physical Data

• Width: 50 mm / 1.969 inch
• Height: 35.7 mm / 1.406 inch
• Depth: 117 mm / 4.606 inch

Material Data

• Housing material: Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free
• Fire load: 0.000 MJ
• Weight: 251.000 g
• Conformity marking: CE
• Encapsulation: Polyurethane (PUR), halogen/silicon-free

Environmental Requirements

• Surrounding air temperature (operation): -25 … 60 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP67
• Protection class: III
• Operating altitude: −1000 … 2000 m; Air pressure: 1080 … 795 hPa
• Relative humidity (without condensation): 95 %
• Vibration resistance: 5g per IEC 60068-2-6
• Shock resistance: Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4
• Permissible H2S contaminant concentration at a relative humidity 75 %: 0.1 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 0.5 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821052913
• Customs tariff number Sales Organisation Germany: 85371098990
