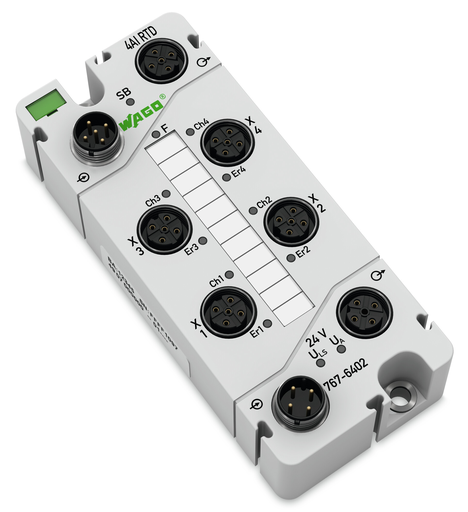

Features

• 1 x module marker (WMB), green
• 1 x marking strip
• 2 x M12 protective cap

Approvals

• UL International Germany GmbH, UL, E175199 Sec.5, UL 508

Specifications

Technical Data

• Number of analog inputs: 4
• Total number of channels (module): 4
• Signal type: Resistance measurement || Potentiometer positions
• Signal type (configurable): Yes
• Sensor connection: 4 x (2-wire, 3-wire, 4-wire); External shield via knurled nut
• Resolution [bit]: 16 bits
• Process data width: 8-byte data + status
• Parameterizable functions: I/O diagnostics (per module): Undervoltage (ULS + UA) || I/O diagnostics (per channel): Measurement range overflow/underflow; Limit value violation (min./max.) || Online simulation (per module): Diagnostics || Online simulation (per channel): Lock/Unlock; Simulation value: according to measurement range; Diagnostics || Measurement range (per channel): Parameterizable || Limiting values (per channel): Min./Max. || Linearization (per channel)): Linear/Pt/Ni/Ni TK 5000/Ni TK 6720 || Integration time (per channel): 2/ 4/ 8/ 16.7/ 20/ 30/ 60/ 120 ms
• Protection: Reverse voltage protection for ULS + Uo
• Resolution (over entire range): 0.05 °C / 0.05 Ω/ 0.25 Ω / 0.005 %
• Measurement error (reference temperature): 25 °C
• Measurement error – deviation (max.) from the upper-range value: 0.1 %
• Temperature coefficient: ±0.001 % of the measurement range/ K
• Measured current (typ.): < 0.5 mA
• Sensor types: Pt100; Configurable: Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000; Potentiometer setting 0 … 100 %: 1 kΩ, 4 kΩ
• Temperature range: -200 … + 850 °C (Pt), -60 … +250 °C (Ni)
• Measurement range: Pt100/ Pt200/ Pt500/ Pt1000, Ni100/ Ni120/ Ni1000; 1 kΩ / 4 kΩ; 0 … 100 % setting angle (for 1 kΩ and 4 kΩ)
• Supply voltage (system and sensor): 24 VDC(-25 … +30 %); Logic and sensors (ULS)
• Power consumption (system and sensor): 40 mA
• Supply voltage (field): 24 VDC (-25 … +30 %); Actuators (UA), for transmission only
• Power consumption, field supply (module with no external load): 4 mA
• Isolation: 500 V supply/system bus
• Indicators: LED (F) red: Error status; LED (SB) green/red/orange: System bus status; LED (ULS, UA) green: Power supply status; LED (Ch1 … Ch4) yellow: Status AI 1 … AI 4; LED (Er1 … Er4) red: Error AI 1 … AI 4; Non-retentive displays
• Current carrying capacity (supply connections): 8 A
• Sampling repetition time: Number of active channels x conversion time x 2
• Integration time: 2 … 120 ms
• Monotonicity without error codes: Yes
• Conversion method (2): SigmaDelta
• Conversion time (2): 1 / Input sampling frequency (s)
• Maximum temporary deviation: 0.05 °C
• Maximum error over the full temperature range: < 2 °C
• Repeat accuracy: 0.05 °C

Connection Data

• Connection technology: inputs/outputs: 4 x M12 socket; A-coded; 5-pole
• Connection technology: field supply: 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket, 4-pole, A-coded
• Connection technology: system supply: 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded
• Connection technology: system bus: 1 x M12 socket, 5-pole, B-coded, shielded; 1 x M12 plug, 5-pole, B-coded, shielded
• Connection requirement, permissible cable length: 30 m
• Connection requirement (permissible cable type): Analog inputs: unshielded

Physical Data

• Width: 50 mm / 1.969 inch
• Height: 35.7 mm / 1.406 inch
• Depth: 117 mm / 4.606 inch

Material Data

• Housing material: Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free
• Fire load: 0.000 MJ
• Weight: 280.000 g
• Conformity marking: CE
• Encapsulation: Polyurethane (PUR), halogen/silicon-free

Environmental Requirements

• Surrounding air temperature (operation): -25 … 60 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP67
• Protection class: III
• Operating altitude: −1000 … 2000 m; Air pressure: 1080 … 795 hPa
• Relative humidity (without condensation): 95 %
• Vibration resistance: 5g per IEC 60068-2-6
• Shock resistance: Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454545253
• Customs tariff number Sales Organisation Germany: 85389099990
