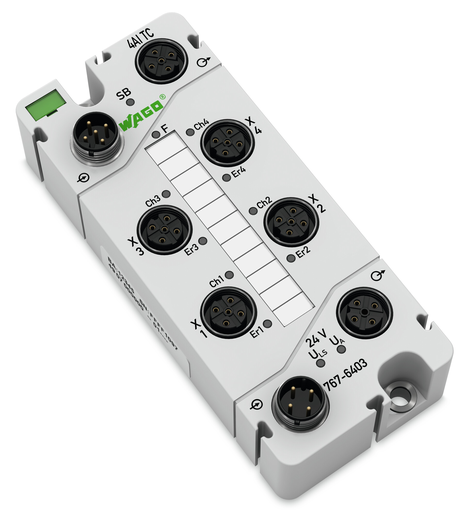

Features

• 1 x module marker (WMB), green
• 1 x marking strip
• 2 x M12 protective cap

Approvals

• DEKRA EXAM GmbH, ATEX, BVS_15_ATEX_E_098_X, EN 60079-0
• UL International Germany GmbH, UL, E175199 Sec.5, UL 508
• DEKRA EXAM GmbH, IECEx, IECEx_BVS_15.0083_X, IEC 60079-0

Specifications

Technical Data

• Number of analog inputs: 4
• Total number of channels (module): 4
• Signal type: Thermocouple || Low voltages
• Signal type (configurable): Yes
• Sensor connection: 4 x (2-wire); External shield via knurled nut
• Resolution [bit]: 16 bits
• Process data width: 8-byte data + status
• Parameterizable functions: I/O diagnostics (per module): Undervoltage (ULS + UA) || I/O diagnostics (per channel): Measurement range overflow/underflow; Limit value violation (min./max.); Wire break || Online simulation (per module): Diagnostics || Online simulation (per channel): Lock/Unlock; Simulation value: according to measurement range; Diagnostics || Measurement range (per channel): Parameterizable || Limiting values (per channel): Min./Max. || Linearization (per channel)): Linear; Type B; C; E; J; K; N; R; S; T || Cold junction compensation (per channel): Type: fixed temperature at current input; Compensation connector on the previous inpu; Temperature: value; Offset: value || Integration time (per channel): 2/ 4/ 8/ 16.7/ 20/ 30/ 60/ 120 ms || Substitute value (per channel): Value
• Protection: Reverse voltage protection for ULS + Uo
• Resolution (over entire range): 0.1 °C or 0.01 mV
• Temperature coefficient: ±0.05 K/K (type K)
• Sensor types: Thermocouple K; Configurable: B, C, E, J, N, R, S, T; Voltage sensors: ± 36 mV, ± 72 mV, ± 145 mV, ± 290 mV
• Temperature range: Type-dependent from –100 to +1.800 °C
• Measurement range: Thermocouples: Type B: +200 … +1.820 °C; Type C: 0 … +2.320 °C; Type E: –250 … +1.000 °C; Type J: –210 … +1.200 °C; Type K: –210 … +1.370 °C; Type N: –210 … +1.300 °C; Type R: –50 … +1.768 °C; Type S: –50 … +1.768 °C; Type T: –210 … +400 °C; Voltage sensors: MB1: ±36 mV; MB2: ±72 mV; MB3: ±145 mV; MB4: ±290 mV
• Supply voltage (system and sensor): 24 VDC(-25 … +30 %); Logic and sensors (ULS)
• Power consumption (system and sensor): 40 mA
• Supply voltage (field): 24 VDC (-25 … +30 %); Actuators (UA), for transmission only
• Power consumption, field supply (module with no external load): 5 mA
• Isolation: 500 V supply/system bus
• Indicators: LED (F) red: Error status; LED (SB) green/red/orange: System bus status; LED (ULS, UA) green: Power supply status; LED (Ch1 … Ch4) yellow: Status AI 1 … AI 4; LED (Er1 … Er4) red: Error AI 1 … AI 4; Non-retentive displays
• Current carrying capacity (supply connections): 8 A
• Sampling repetition time: Number of active channels x conversion time
• Integration time: 2 … 120 ms
• Monotonicity without error codes: Yes
• Conversion method (2): SigmaDelta
• Conversion time (2): Integration time x 3
• Max. measurement error (cold junction): ≤ ± 1 K
• Max. measurement error (without temperature compensation): ≤ ± 1 K over the entire measurement range (for type K)
• Maximum error over the full temperature range: ± 3 K

Connection Data

• Connection technology: inputs/outputs: 4 x M12 socket; A-coded; 5-pole
• Connection technology: field supply: 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket, 4-pole, A-coded
• Connection technology: system supply: 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded
• Connection technology: system bus: 1 x M12 socket, 5-pole, B-coded, shielded; 1 x M12 plug, 5-pole, B-coded, shielded
• Connection requirement, permissible cable length: 30 m
• Connection requirement (permissible cable type): Analog inputs: unshielded

Physical Data

• Width: 50 mm / 1.969 inch
• Height: 35.7 mm / 1.406 inch
• Depth: 117 mm / 4.606 inch

Material Data

• Housing material: Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free
• Fire load: 0.000 MJ
• Weight: 263.000 g
• Conformity marking: CE
• Encapsulation: Polyurethane (PUR), halogen/silicon-free

Environmental Requirements

• Surrounding air temperature (operation): -25 … 60 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP67
• Protection class: III
• Operating altitude: −1000 … 2000 m; Air pressure: 1080 … 795 hPa
• Relative humidity (without condensation): 95 %
• Vibration resistance: 5g per IEC 60068-2-6
• Shock resistance: Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454951108
• Customs tariff number Sales Organisation Germany: 85389099990
