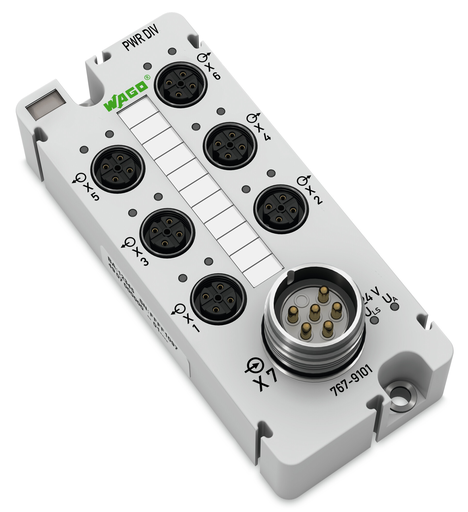

Features

• 1 x module marker (WMB), gray
• 1 x marking strip
• 2 x M12 protective cap

Approvals

• UL International Germany GmbH, UL, E175199 Sec.5, UL 508

Specifications

Technical Data

• Number of outputs: 6
• Signal type: Voltage
• Voltage signal type: 24 VDC
• Short circuit protection: No
• Supply voltage (system): 24 VDC (-25 … +30 %)
• Power consumption (5 V system supply): 4 mA
• Supply voltage (field): 24 VDC (-25 … +30 %)
• Power consumption, field supply (module with no external load): 4 mA
• Isolation: 500 V system/field
• Indicators: LED (ULS, UA) green: Power supply status; Non-retentive displays
• Current carrying capacity (supply connections): 8 A
• Current carrying capacity (module): Max. 24 A (ULS max. 8 A; UA max. 16 A); Derating must be observed!

Connection Data

• Connection technology: field supply: ; 6 x M12 socket, 4-pole, A-coded
• Connection technology: system supply: 1 x M23 plug, 6-pole

Physical Data

• Width: 50 mm / 1.969 inch
• Height: 43.3 mm / 1.705 inch
• Depth: 117 mm / 4.606 inch

Material Data

• Housing material: Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free
• Fire load: 0.000 MJ
• Weight: 256.000 g
• Conformity marking: CE
• Encapsulation: Polyurethane (PUR), halogen/silicon-free

Environmental Requirements

• Surrounding air temperature (operation): -25 … 60 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP67
• Protection class: I
• Relative humidity (without condensation): 95 %
• Vibration resistance: 5g per IEC 60068-2-6
• Shock resistance: Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454549084
• Customs tariff number Sales Organisation Germany: 85389091890
