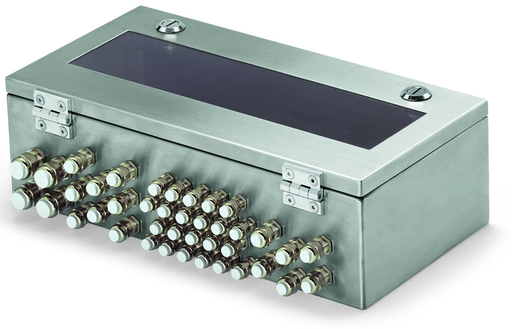

Features

• Stainless steel enclosure 1.4301 streak finish
• With hinged cover 90°, (850-804/000-001: 180°), with cellular rubber gasket made of natural rubber, 2 to 3 quick disconnects
• Macrolon inspection glass
• Metric cable grips (brass, nickel-plated), incl. filler plugs; M12 cable grip, cable diameter 3–6mm; M16 cable grip, cable diameter 5–9mm; M20 cable grip, cable diameter 9–13mm
• 1 DIN 35/7.5 rail

Specifications

Technical Data

• Number of I/O modules: 24

Physical Data

• Width: 400 mm / 15.748 inch
• Height: 123 mm / 4.843 inch
• Depth: 200 mm / 7.874 inch
• Panel cutout (W x H): (376 x 176) mm

Mechanical Data

• Cable bushings (number): 28
• Cable bushings (type): M12 (3 … 6 mm cable diameter)
• Number of cable bushings (2): 16
• Cable bushings, type (2): M16 (5 … 9 mm cable diameter)
• Number of cable bushings (3): 4
• Cable bushings, type (3): M20 (9 … 13 mm cable diameter)

Material Data

• Fire load: 0.000 MJ
• Weight: 4985.120 g

Environmental Requirements

• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP65

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4017332818551
• Customs tariff number Sales Organisation Germany: 85381000900
