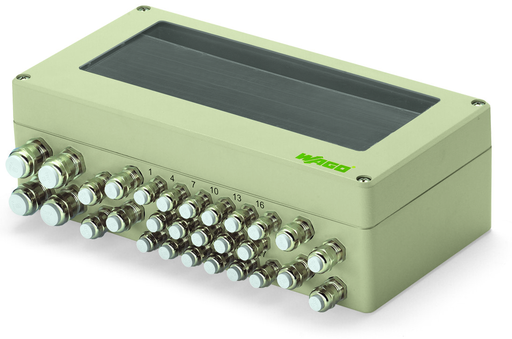

Features

• Aluminum enclosure, G AL Si 12 alloy / DIN 1725
• Stainless steel cover screws, captive
• Inspection glass, incl. attachment panel for customer marking (marking not included in scope of supply)
• Mounting holes (4 mounting channels located outside the sealed enclosure)
• Metric cable grips (brass, nickel-plated), incl. filler plugs; M12 cable grip, cable diameter 3–6mm; M16 cable grip, cable diameter 5–9mm; M20 cable grip, cable diameter 9–13mm
• 1 DIN 35/7.5 rail
• Tongue and groove system, seal with groove in enclosure cover
• Oil and petroleum-resistant neoprene round chord seal
• Grounding link in enclosure
• Pebble gray, RAL 7032

Specifications

Technical Data

• Number of I/O modules: 18

Physical Data

• Width: 320 mm / 12.598 inch
• Height: 100 mm / 3.937 inch
• Depth: 160 mm / 6.299 inch
• Panel cutout (W x H): (302 x 142) mm

Mechanical Data

• Cable bushings (number): 17
• Cable bushings (type): M12 (3 … 6 mm cable diameter)
• Number of cable bushings (2): 8
• Cable bushings, type (2): M16 (5 … 9 mm cable diameter)
• Number of cable bushings (3): 4
• Cable bushings, type (3): M20 (9 … 13 mm cable diameter)

Material Data

• Fire load: 0.000 MJ
• Weight: 3041.300 g

Environmental Requirements

• Protection type: IP65

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4017332819428
• Customs tariff number Sales Organisation Germany: 85381000900
