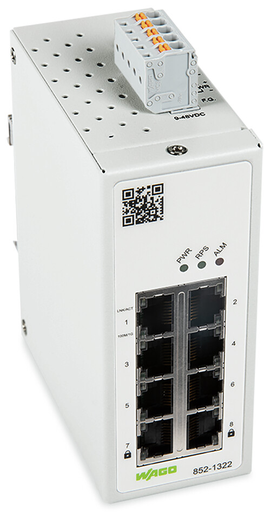

Features

• Web-based (HTTP(S))
• Configuration and diagnostics via SNMPv3
• Redundant DC power supply
• Supply voltage range: 9 … 48 VDC
• Full compliance with IEEE802.3, 802.3u, 802.3x, 802.3ab, 802.1p, 802.1X, 802.1Q, 802.1AE standards
• Non-blocking, store-and-forward switching
• Auto-negotiation at all 10/100/1000BASE-T ports
• Auto‐MDI/MDIX (crossover) at all 10/100/1000Base‐T ports
• SNMP v1/v2c/v3

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 62368-1

Specifications

Technical Data

• Switching mode: Store‐and‐forward; non-blocking
• Number of 1000BASE-T ports: 8
• Communication standards: IEEE 802.3 10BASE-T || IEEE 802.3u 100BASE-TX || IEEE 802.3ab 1000BASE-T || IEEE 802.3x Flow Control || IEEE 802.1p Prioritization || IEEE 802.1X Port Authentication || IEEE 802.1Q VLAN Tagging || IEEE 802.1AE MAC Security
• Redundancy function: Redundant DC power supply
• Configuration options: Web-based (HTTP(S)) || SNMPv1/v2c/v3
• Diagnostics: Modbus TCP; Port status; Syslog; SNMP traps
• MAC table (size): 16000 addresses
• Supply voltage: 9 … 48 VDC
• Power consumption (max.): 5.8 W
• ESD (contact/air discharge): 8 KV / 15 KV
• Baud rate: Copper cable: 10/1000 Mbit/s
• Indicators: Device: LED (PWR, RPS) green: Power supply (primary), redundant power supply (secondary); LED (ALM) red: Alarm; per port: LED (100M/1G, LNK/ACT) green: Status 100 Mbit/s/1 Gbit/s, LNK/ACT ports 1 … 8

Connection Data

• Connection technology: communication/fieldbus: Copper cable: 8 x RJ-45
• Connection technology: supply: 1 x Built-in male connector: 231-435/001-000; included female connector (MCS Connectors): 2231-105/026-000

Physical Data

• Width: 45.3 mm / 1.783 inch
• Height: 110 mm / 4.331 inch
• Depth: 92 mm / 3.622 inch

Mechanical Data

• Weight: 628.000 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 70 °C
• Surrounding air temperature (storage): -40 … 80 °C
• Protection type: IP30
• Relative humidity (without condensation): 95 %
• Mounting type: DIN-35 rail
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: Per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 55011, 55024, 55032 (Class A + B), 61000-6-3, -4
• Fire load: 0.000 MJ

Commercial Data

• Country of origin Sales Organisation Germany: TW
• GTIN: 4055143978163
• Customs tariff number Sales Organisation Germany: 85176200000
