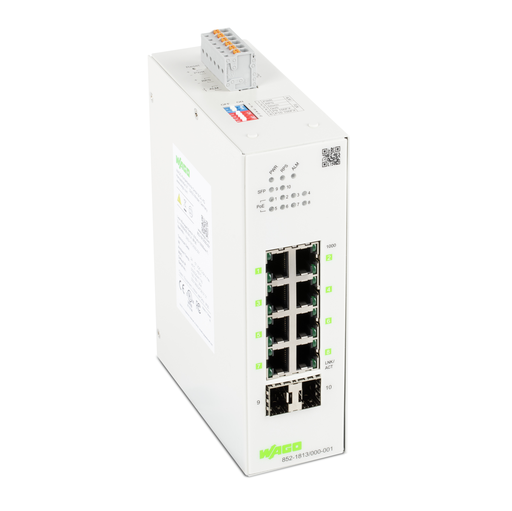

Features

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Technical Data

• Switching mode: Store‐and‐forward; non-blocking
• Number of 1000BASE-T ports: 8
• Number of 1000Base SX/LX ports: 2
• Communication standards: IEEE 802.3 10BASE-T || IEEE 802.3u 100BASE-TX/FX || IEEE 802.3ab 1000BASE-T || IEEE 802.3x Flow Control || IEEE 802.1d Spanning Tree Protocol (STP) || IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) || IEEE 802.1Q VLAN Tagging || IEEE 802.1p Prioritization || IEEE 802.1X Port Authentication || IEEE 802.1ab Link Layer Discovery Protocol (LLDP) || IEEE 802.3af Power over Ethernet (PoE) || IEEE 802.3at High Power over Ethernet (PoE+) || IEEE 802.3az Energy Efficient Ethernet || ITU-T G8032v1/v2 Ethernet Ring Protection Switching (ERPS)
• Redundancy function: Redundant DC power supply; STP; RSTP; ERPSv1/v2 (max. 2 rings per switch, max. 16 switches per ring, switching time < 800 ms)
• Configuration options: DIP switch for signal contact || Web-Based Management || Command Line Interface || SNMPv1/v2c/v3
• Diagnostics: Signal contact; Modbus TCP; port status; port statistics; port load; traffic monitor; syslog; SNMP traps; loop detection; diagnostics dashboard; topology map
• Security: Access Control List mit max. 32 Einträgen; Port Security; Authentication IEEE 802.1X
• MAC table (size): 8000 addresses
• Jumbo frame size: 10000 Byte
• Supply voltage: 24 … 57 VDC
• Power consumption (max.): 13 W
• Power consumption note: 253 W with 8 PoE+; 30 W per port
• ESD (contact/air discharge): 8 KV / 15 KV
• Baud rate: Copper cable: 10/1000 Mbit/s; Fiber optic:1000 Mbit/s
• Transmission medium (communication/fieldbus): Fiber optic: SX Multi-Mode, LX Single-Mode
• Optical fiber type: Single-mode and multi-mode
• VLAN: Port-based and tag-based (max. 5 VLANs)

Connection Data

• Connection technology: communication/fieldbus: Copper cable: 8 x RJ-45; Fiber optic: 2 x SFP; LC fiber-optic connector

Physical Data

• Width: 50 mm / 1.969 inch
• Height: 160 mm / 6.299 inch
• Depth: 120 mm / 4.724 inch

Mechanical Data

• Weight: 560.000 g
• Color: Light gray
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): -40 … 60 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP30
• Relative humidity (without condensation): 95 %
• Mounting type: DIN-35 rail
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: Per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4
• Fire load: 0.000 MJ

Commercial Data

• Country of origin Sales Organisation Germany: TW
• GTIN: 4055144019520
• Customs tariff number Sales Organisation Germany: 85176200000
