Features

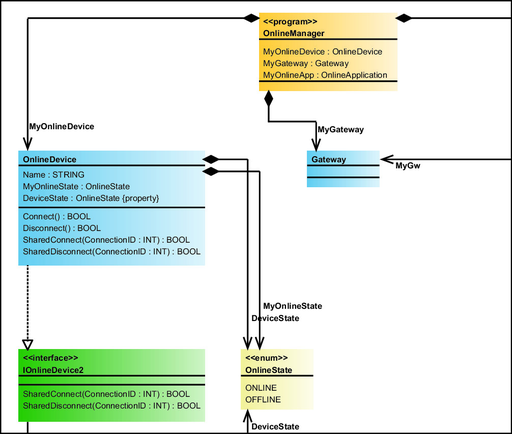

• Improved readability of the program code via clear class and behavior diagrams in standardized form
• Reduce programming errors by generating program code from UML diagrams
• Easier debugging through online data in the state diagram
• Class (POU)
• Interface
• Variable declaration
• Property
• Method
• Generalization
• Realization relationship
• Association
• Composition
• Start state
• End state
• State
• Composite state
• Junction/connection
• Selection
• Transition
• End transition
• Exception transition

Specifications

System Requirements

• Hard disk space: Min. 20 MByte
• Other required software: e!COCKPIT version: V1.3.0

Delivery

• License type: Single-user license
• Delivery type: Installation file (download)
• License type (note): Single license allows installation on one computer.
• Note on license type (2): Internet connection may be required for license activation.

Commercial Data

• Country of origin Sales Organisation Germany: QU
• GTIN: 4055143590808
• Customs tariff number Sales Organisation Germany: 88888888888
