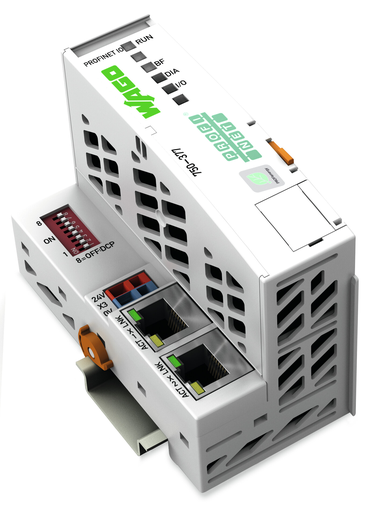

Features

Approvals

• Lloyds Register EMEA, LR, 02/20026 (E6)
• TUEV Nord Cert GmbH, IECEx, IECEx_TUN_14.0035_X, IEC 60079-0
• TUEV Nord Cert GmbH, ATEX, TUEV_14_ATEX_148929_X, EN 60079-0
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• CQST/CNEx, CCCEx, 2020312310000213, CNCA-C23-01
• National Radio Research Agency, KC, MSIP-REM-W43-FBC750, Article 58-2, Clause 3
• American Bureau of Shipping, ABS, 19-HG1821926
• RINA Germany GmbH, RINA, ELE066419XG
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194

Specifications

Technical Data

• Communication: PROFINET IO
• Device-specific: Supported profiles: PROFIsafe V2, PROFIenergy V1.0; ID code: Vendor ID: 0x011D; Device ID: 0x02EE; Module ID: 0x01000177 (firmware version 01, 02), 0x02000177 (from firmware version 03)
• Baud rate: 10/100 Mbit/s (10 Mbit/s (ETHERNET protocols), 100 Mbit/s full duplex (PROFINET IO))
• Bus segment length (max.): 100 m
• Transmission medium: Twisted pair S-UTP; 100 Ω; Cat. 5
• Number of modules per node (max.): 64
• Input and output (fieldbus) process image (max.): 256 Byte/256 Byte
• Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector
• Power consumption (5 V system supply): 450 mA
• Total current (system supply): 700 mA
• Input current (typ.) at nominal load (24 V): 280 mA
• Power supply efficiency (typ.) at nominal load (24 V): 90 %
• Isolation: 500 V system/field

Connection Data

• Connection technology: communication/fieldbus: PROFINET IO: 2 x RJ-45
• Connection technology: system supply: 2 x CAGE CLAMP®
• Connection technology: device configuration: 1 x Male connector; 4-pole
• Connection type (1): System supply
• Solid conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

• Width: 49.5 mm / 1.949 inch
• Height: 96.8 mm / 3.811 inch
• Depth: 71.9 mm / 2.831 inch
• Depth from upper edge of DIN-rail: 64.7 mm / 2.547 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 1.375 MJ
• Weight: 107.080 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-3, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821687443
• Customs tariff number Sales Organisation Germany: 85176200000
