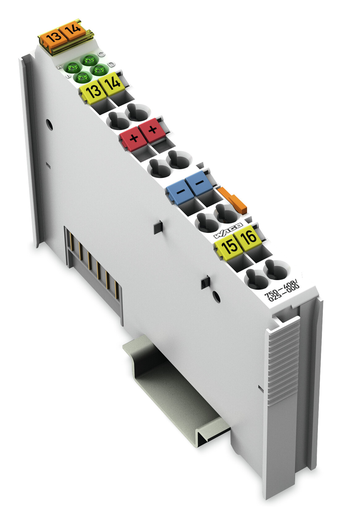

Features

Approvals

• National Radio Research Agency, KC, MSIP-REM-W43-DIM750, Article 58-2, Clause 3
• CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001J4
• American Bureau of Shipping, ABS, 19-HG1821812-PDA
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
• TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
• Lloyds Register, LR, LR_19_20048
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• Polski Rejestr Statków, PRS, TE/2237/880590/19
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201

Specifications

Technical Data

• Number of digital inputs: 4
• Total number of channels (module): 4
• Signal type: Voltage
• Voltage signal type: 24 VDC
• Supply voltage (sensor): 24 VDC
• Sensor connection: 2 x (2-wire, 3-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other sensors.
• Input characteristic: Low-side switching
• Input filter (digital): 3 ms
• Input current per channel for signal (0) (typ.): 7 mA
• Voltage range for signal (0): (UV - 5 V) … UV DC
• Voltage range for signal (1): −3 VDC … (UV - 15 V)
• Input data width (internal) (max.): 4 bits
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 5 mA
• Supply voltage (field): 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Isolation: 500 V system/field
• Indicators: LED (A-D) green: Status DI 1 … DI 4
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Current carrying capacity (power jumper contacts): 10 A

Connection Data

• Connection technology: inputs/outputs: 8 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 100 mm / 3.937 inch
• Depth: 69.8 mm / 2.748 inch
• Depth from upper edge of DIN-rail: 62.6 mm / 2.465 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Wiring interface: Fixed

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 0.952 MJ
• Weight: 46.331 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): -20 … 60 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Relative humidity (with condensation): Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of −20 to +60 °C (except for wind-driven precipitation, water and ice formation)
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-4, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821388548
• Customs tariff number Sales Organisation Germany: 85389099990
