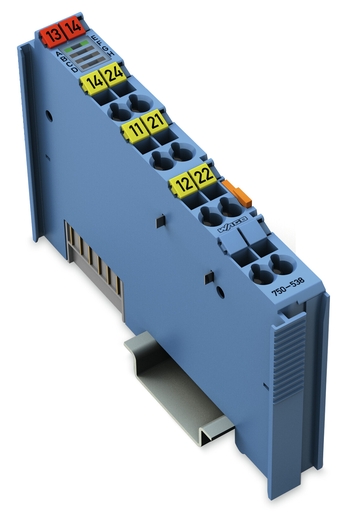

Features

Approvals

• American Bureau of Shipping, ABS, 19-HG1821926
• TUEV Nord Cert GmbH, TUEV Nord, IECEx TUN 12.0039X, IEC 60079
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• UL International Germany GmbH, AEx, E480271, UL 60079
• TÜV Rheinland do Brasil Ltda., INMETRO, TÜV_14.1911_X
• TUEV Nord Cert GmbH, ATEX, TUEV_12_ATEX_106032X, EN 60079-0
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• CQST/CNEx, CCCEx, 2020312310000211, CNCA-C23-01
• National Radio Research Agency, KC, MSIP-REM-W43-DOM750, Article 58-2, Clause 3
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• Lloyds Register EMEA, LR, 02/20026 (E6)
• RINA Germany GmbH, RINA, ELE066419XG
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201

Specifications

Notes

• Note: The digital output module must only be operated via 24 VDC Ex i!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals!

Technical Data

• Number of digital outputs: 2
• Total number of channels (module): 2
• Signal type: Voltage
• Voltage signal type: 100 VAC; 30 VDC
• Actuator connection: 2 x (2-wire)
• Output circuit design: 2 changeover contacts || Relays
• Output characteristic: Potential-free
• Switching frequency (max.): 0.3 Hz
• Load type: Resistive, inductive, lamp load
• Switching voltage (max.): 100 VAC, 30 VDC
• Switching current (max.): 0.5 A
• Switching current (note): 0.5 A at 100 VAC; 1 A at 30 VDC
• Switching voltage (min.): 0.1 V
• Switching current (min.): 0.01 mA
• Power consumption Pmax.: 0.8 W
• Switching power: 50 VA / 30 W
• Pull-in time (max.): 4 ms
• Drop-out time (max.): 4 ms
• Electrical switching operations (min.) (at max. resistive load): 100 x 103 switching operations
• Mechanical switching operations (min.) (at max. resistive load): 100 x 106 switching operations
• Output (internal) data width (max.): 2 bits
• Intrinsic safety Ex i: Yes
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 26 mA
• Supply voltage (field): 24 VDC; (Ex i power supply: UO = max. 27.3 V); via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Power consumption, field supply (module with no external load): 24 mA
• Power loss Pl: 0.8 W
• Isolation: 300 VAC system/field
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Current carrying capacity (power jumper contacts): 1 A
• Marking: ATEX, IECEx, Underwriters Laboratories Inc.

Explosion Protection

• Ex guideline: EN IEC 60079-0, -7, -11
• Safety-relevant data (circuit): Relay output: Ui = 30 VDC; Ii = 1 A; Pi = 30 W; Ui = 100 VAC; Ii = 0.5 A; Pi = 50 VA; Li = negligibly small; Ci = negligibly small

Connection Data

• Connection technology: inputs/outputs: 8 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 100 mm / 3.937 inch
• Depth: 67.8 mm / 2.669 inch
• Depth from upper edge of DIN-rail: 60.6 mm / 2.386 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Blue
• Contact material: Ag alloy (with gold flash)
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 0.874 MJ
• Weight: 49.100 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-3, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821694823
• Customs tariff number Sales Organisation Germany: 85371098990
