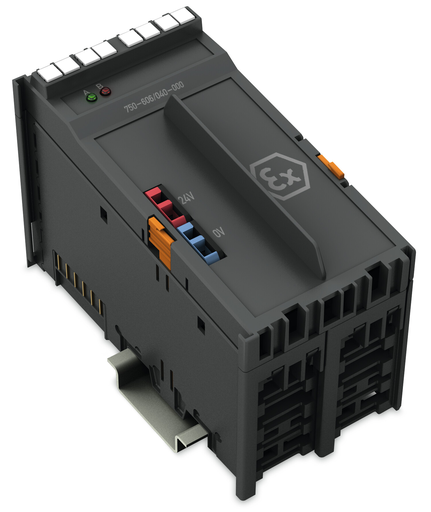

Features

• Indicators:
• Green LED (input voltage)
• Green/red LED (output voltage available/not available)
• Extended temperature range
• Greater immunity to impulse voltages and electromagnetic interference
• Higher vibration and shock resistance

Approvals

• Lloyds Register, LR, 17/20073 LR
• TUEV Nord Cert GmbH, IECEx, IECEx TUN 17.0005X, IEC 60079-0
• Polski Rejestr Statków, PRS, TE/2215/880590/18
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• CQST/CNEx, CCCEx, 2020312310000212, CNCA-C23-01
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00000Y7
• Underwriters Laboratories Inc., UL, E175199 Sec10, UL 61010-2-201
• TUEV Nord Cert GmbH, ATEX, TUEV_17_ATEX_196484X, EN 60079-0
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• American Bureau of Shipping, ABS, 18-HG1778162-PDA

Specifications

Notes

• Note: General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 XTR manuals!

Technical Data

• Fuse: Electronic
• Power consumption Pmax.: 29 W
• Data width: 2 bits (input voltage failure, fuse triggered)
• Intrinsic safety Ex i: Yes
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 7.5 mA
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via CAGE CLAMP® connection; transmission via spring contact); Derating must be observed!
• Power loss Pl: < 5 W
• Rated surge voltage: 1 kV; Rated surge voltage between intrinsically safe and non-intrinsically safe circuits: 1.5 kV (EN 60079-11)
• Number of outgoing power jumper contacts: 2
• Current carrying capacity (power jumper contacts): 1 A
• Derating: Derating (supply voltage): Surrounding air temperatures under laboratory conditions: (-25 … +30 %); for -40 … +55 °C: 24 V (-25 … +20 %); for +55 … +70 °C: 24 V (-25 … +10 %); Lower limit in all temperature ranges: −27.5 % (including 15 % residual ripple)
• Marking: ATEX/IECEx: II 3G Ex ec IIC T4 Gc

Explosion Protection

• Ex guideline: EN/IEC 60079-0, -7, -11
• Power supply (output): Uo = 26.8 V (intrinsically safe output voltage per protection level ia); In = 1 A
• Power supply (input): Un = 24 VDC; Pmax. = 29 W; Um = 253 V

Connection Data

• Connection technology: field supply: 2 x CAGE CLAMP®
• Connection type (1): Field supply
• Solid conductor: 0.25 … 1.5 mm² / 24 … 14 AWG
• Fine-stranded conductor: 0.25 … 1.5 mm² / 24 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

• Width: 48 mm / 1.89 inch
• Height: 100 mm / 3.937 inch
• Depth: 70.9 mm / 2.791 inch
• Depth from upper edge of DIN-rail: 63.7 mm / 2.508 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Dark gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 0.513 MJ
• Weight: 168.300 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): -40 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Relative humidity (with condensation): Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
• Vibration resistance: Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3
• Shock resistance: Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 61373
• EMC immunity to interference: Per EN 61000-6-1, -2, EN 61131-2, marine applications, EN 60255-26, EN 60870-2-1, EN 61850-3, IEC 61000-6-5, IEEE 1613, VDEW: 1994
• EMC emission of interference: Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143649575
• Customs tariff number Sales Organisation Germany: 85389091890
